LED Indicators Optical Media Converter 1 Port 1000M PSE 1KM SFP Long Lifespan
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 working days
Brand:
OPTFOCUS
Product Description
1port 1000M PSE + 1port 1000M MM 1KM SFP Fiber Media Converter
Product Description
| Technical items | Description |
| Product Name | 10/100/1000M PoE Media Converter |
| Product Model | OFS-PE-GAS-1 |
| Interface | 1x 10/100/1000Base-T port + 1x 1000Mbps SFP |
| standard | IEEE802.3i 100BASE-T |
| IEEE802.3u 1000BASE-TX | |
| IEEE 802.3 100Base-T | |
| IEEE 802.3u 1000Base-TX | |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR; Link: Link/Act;PoE |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports: 2 port support PoE | |
| Power Output: Max. 15.4 watts (IEEE 802.3af) | |
| Max. 30 watts (IEEE 802.3at) | |
| PoE port Auto detect AF/AT devices | |
| Output Voltage: DC48V | |
| Power Pin Assignment:4/5+;7/8- | |
| Power Supply | Input Voltage: DC52V (48～55V) |
| Power | 3W(When the PD device is not connected) |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter), | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter), | |
| Fiber Media | Multi-mode: 2KM |
| Single-mode: 20/40/60/80KM | |
| Forwarding Rate: | 1488000pps/port |
| Working Environment | Working temperature: -10～55℃ ; Storage temperature: -20～75℃ |
| Relative Humidity: 5%~95 %( no condensation) | |
| Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
| Packing List | 1× Media Converter |
| 1×User Manual/Certificate of quality/Warranty card | |
| 1×power adapter | |
| MTBF | 100,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |
| Product size (L×W×H): 93mm× 70mm× 26mm | |
| Packing size(L×W×H): 215mm×138 mm× 56mm | |
| Warranty | 1-years |
Feature:
- 1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP
- 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
- 1 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
- LED indicators for monitoring power/link/activity
- Supports10/100/1000Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation for lightning protection,Optional.
- Supports Broadcast Storm Control
- Excellent heat elimination without cooling fan.
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
- Harsh industrial environment or higher requirement
- -10℃-55℃ operating temperature range
DIP Switch:
| SW1 | ON | Enable Link Fault Pass-Through |
| OFF | Disable Link Fault Pass-Through | |
| SW2 | ON | Cut-Through(9K) |
| OFF | Store and Forward | |
| SW3 | ON | Flow control enable |
| OFF | Flow control disable | |
| SW4 | ON | FX Speed 1000Mbps |
| OFF | FX Speed 100Mbps |

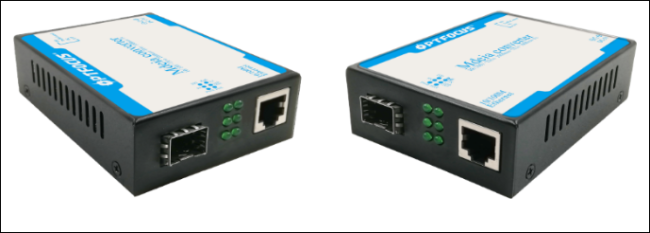

Product Exhibition
10/100/1000Base-T RJ45, 1000M fiber ports(SFP), without SFP module,PoE,external PS
