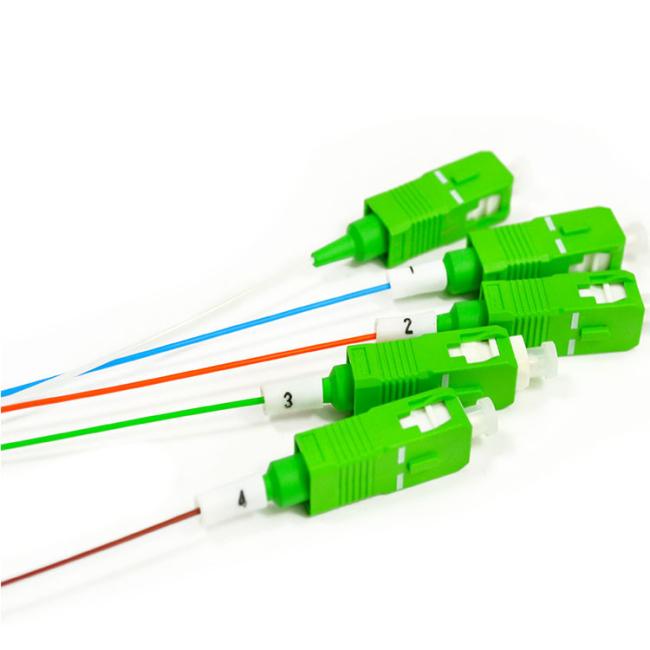

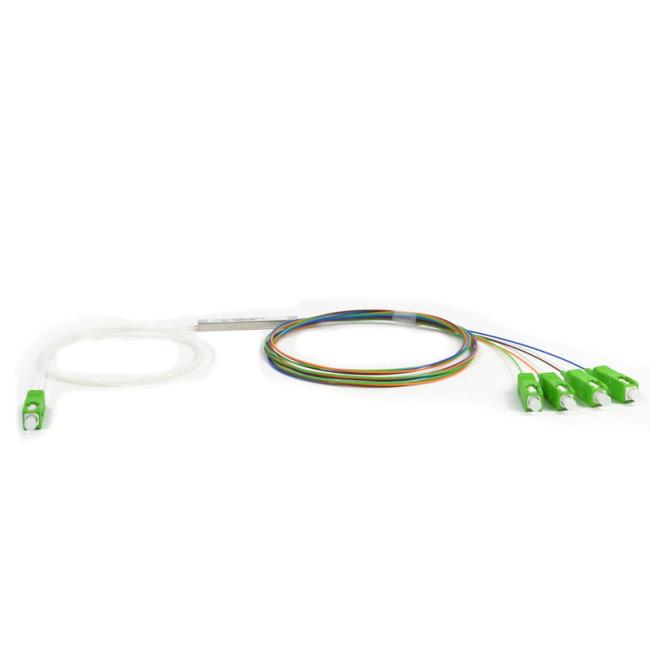

LC APC Fiber Optic Coupler Splitter PLC Low Insertion Loss 1*4 Steel Tube Type
Low Insertion Loss 1*2 Steel tube type plc splitter with LC APC fiber optic PLC splitter
Specification
| Characteristics | Unit | Value / Performance | |||||||
| 1 * 2 , 2 * 2 | |||||||||
| Center Wavelength | nm | 1310 and 1550 | |||||||
| Bandwidth | nm | ±40 | |||||||
| Excess Loss | dB | ≤0.08 (0.06 typ.) | |||||||
| Coupling Ratio | - | 50/50 | 40/60 | 30/70 | 20/80 | ||||
| Typ. Insertion Loss | dB | 3.06 | 4.1/2.3 | 5.3/1.6 | 7.1/1.0 | ||||
| Polarization Dependent Loss | dB | ≤0.1 | ≤0.1 | ≤0.15/0.1 | ≤0.15/0.1 | ||||
| Thermal Stability | dB | ≤0.2 | ≤0.3 | ≤0.4 | ≤0.5 | ||||
| Directivity | dB | ≥60 | |||||||
| Operating Temperature | ℃ | -20~+70 | |||||||
| Lead Length | m | One, others on request | |||||||
| Lead Type | - | 900um, 2mm or 3mm loose tube | |||||||
| Package Type | - | C | D | E |
F |
||||
Applications:
- Local Area Networks
- CATV distribution
- Fiber optic sensors
- DWDM systems
- Trunk/loop branching
Features:
- Dual wavelength with wide bandwidth
- Low loss
- Low polarization dependence
- Environmentally stable
- Excellent uniformity
Ordering Information
1. Package TypeA1, A3, B, C, D or E
2. Wavelength3=1310nm & 1550nm
3. Lead Length0.5=0.5m, 1=1m, etc.
4. Lead Type1=250um, 2=900um, 3=2.0mm, 4=3.0mm
5. Configuration12=1x2, 22=2x2, 18=1x8, 1616=16x16, 132=1x32, etc.
6. Coupling Ratio50/50, 40/60, 20/80, 25x4(for 25/25/25/25), etc.
7. Connectors Terminated Blank=no connector, FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC
Specification
|
Characteristics |
Unit |
Value / Performance |
|||||||
|
1 * 2 , 2 * 2 |
|||||||||
|
Center Wavelength |
nm |
1310 and 1550 |
|||||||
|
Bandwidth |
nm |
±40 |
|||||||
|
Excess Loss |
dB |
≤0.08 (0.06 typ.) |
|||||||
|
Coupling Ratio |
- |
50/50 |
40/60 |
30/70 |
20/80 |
||||
|
Typ. Insertion Loss |
dB |
3.06 |
4.1/2.3 |
5.3/1.6 |
7.1/1.0 |
||||
|
Polarization Dependent Loss |
dB |
≤0.1 |
≤0.1 |
≤0.15/0.1 |
≤0.15/0.1 |
||||
|
Thermal Stability |
dB |
≤0.2 |
≤0.3 |
≤0.4 |
≤0.5 |
||||
|
Directivity |
dB |
≥60 |
|||||||
|
Operating Temperature |
℃ |
-20~+70 |
|||||||
|
Lead Length |
m |
One, others on request |
|||||||
|
Lead Type |
- |
900um, 2mm or 3mm loose tube |
|||||||
|
Package Type |
- |
C |
D |
E |
F |
||||
|
Characteristics |
Unit |
Value / Performance |
|||||||||||
|
1 * N , 2 * N |
|||||||||||||
|
Configuration |
- |
N*4 N=1,2,4 |
N*8 N=1,2,8 |
N*16 N=1,2,16 |
N*32 N=1,2,32 |
||||||||
|
Center Wavelength |
nm |
1310 and 1550 |
|||||||||||
|
Bandwidth |
nm |
±40 |
|||||||||||
|
Max Excess Loss |
dB |
0.2 |
0.3 |
0.4 |
0.5 |
||||||||
|
Max. Insertion Loss |
dB |
7.0 |
10.5 |
14 |
17.5 |
||||||||
|
Typ. Insertion Loss |
dB |
6.2 |
9.3 |
12.4 |
15.5 |
||||||||
|
Polarization Dependent Loss |
dB |
≤0.2 |
≤0.3 |
≤0.4 |
≤0.5 |
||||||||
|
Thermal Stability |
dB |
≤0.2 |
≤0.3 |
≤0.4 |
≤0.5 |
||||||||
|
Directivity |
dB |
≥60 |
|||||||||||
|
Operating Temperature |
℃ |
-20~+70 |
|||||||||||
|
Lead Length |
m |
One, others on request |
|||||||||||
|
Lead Type |
- |
900um, 2mm or 3mm loose tube |
|||||||||||
|
Package Type |
- |
C |
D |
E |
F |
||||||||
|
Uniformity |
dB |
≤1.6 |
≤2.4 |
≤3.2 |
≤4.0 |
||||||||
