China Steel Tube Fiber Optic Splitter PLC / FBT 1X4 With SC APC Connectors For ONU FTTX for sale

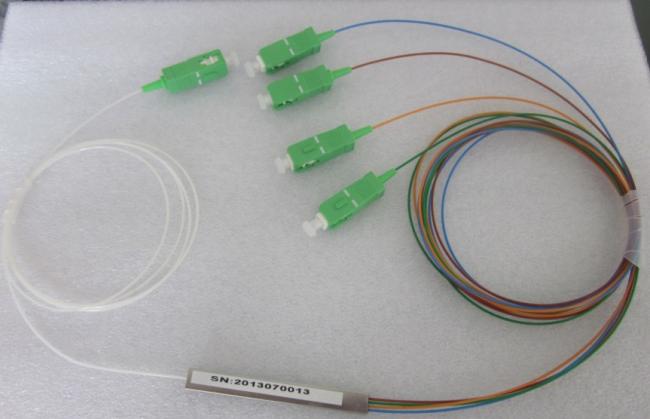

Steel Tube Fiber Optic Splitter PLC / FBT 1X4 With SC APC Connectors For ONU FTTX

Name: Steel Tube Fiber Optic Splitter PLC / FBT 1X4 With SC APC Connectors For ONU FTTX
Brand: Shenzhen Optfocus Technology Co., Ltd.

Price Negotiable

Price: 0.2

MOQ: 1 pieces

Delivery Time: 5-14 working days

Brand: Optfocus

Product Description

steel tube fiber optic splitter PLC/FBT 1*4 with SC/UPC connectors for ONU FTTX

1×N PLC Splitter
Port Configuration		1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength (nm)		1260-1650
Fiber Type		G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	Max	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21	23.8/24.2
Loss Uniformity (dB)	Max	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	Max	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss (dB)	Min	55	55	55	55	55	55	55
Directivity (dB)	Min	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	Max	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature (℃)			-40～85
Storage Temperature (℃)			-40～85
Device Dimension (mm) (L×W×H)		40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4	N/A
Mini-Module Dimension (mm) (L×W×H)		60×7×4	60×7×4	60×7×4	60×12×4	80×20×6	100×40×6	N/A
Module Dimension (mm) (L×W×H)		100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18	140×115×18


2×N PLC Splitter
Port Configuration		2×2	2×4	2×8	2×16	2×32	2×64	2×128
Operating Wavelength (nm)		1260-1650
Fiber Type		G657A1 or customer specified
Insertion Loss (dB)	Max	4.2	7.6	11.0	14.4	17.5	21	24.5
Loss Uniformity (dB)	Max	0.9	1.1	1.2	1.5	1.8	2.2	2.5
Polarization Dependent Loss (dB)	Max	0.2	0.2	0.3	0.3	0.35	0.4	0.40
Return Loss (dB)	Min	55	55	55	55	55	55	55
Directivity (dB)	Min	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	Max	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature (℃)			-40～85
Storage Temperature (℃)			-40～85
Device Dimension (mm) (L×W×H)		40×4×4	50×4×4	50×4×4	50×7×4	60×7×4	N/A	N/A
Mini-Module Dimension (mm) (L×W×H)		60×7×4	60×7×4	60×7×4	60×12×4	100×20×6	N/A	N/A
Module Dimension (mm) (L×W×H)		100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18	140×115×18
