1.25G SFP Optical Transceiver Bi-Directional Transceiver, 3km Reach TX 1310nm /RX 1550nm LC With DDM function
Price:
USD 12.99
MOQ:
1 pairs
Delivery Time:
Within 3-7 days after get payment
Brand:
OPTFOCUS
Product Description
1.25G SFP Optical Transceiver Bi-Directional Transceiver, 3km Reach TX 1310nm /RX 1550nm LC With DDM function
SFP Optical Transceiver Details
| Model Number: OFSB-3512L-03 | Connector:LC Connector |
| Type: Fiber Optic Transceivers | Diagnostics:digital |
| Place of Origin: Shenzhen, China | TX Power(dBm):0~+4 |
| Brand Name: OPTFOCUS | Temperature:0°C~70°C |
| Network:Wired LAN | Voltage supply:3.3v |
| Wavelength:RX1310 TX1550nm | RX Sens(dBm):<=24 |
| Data Rate:1.25Gb | Use:FTTX |
| Working Distance:3km | Certification:FCC |
| SFP Optical Transceiver Transmitter Characteristics | |||||
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Optical Transmitter Power | P0 | 6 | 7.5 | 11 | dBm |
| Optical Transmitter Power off | POFF | - | - | -39 | dBm |
| Output Center Wavelength | λ | 1480 | - | 1500 | nm |
| Output Spectrum Width | Δλ | - | - | 1.0 | nm |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB |
| Extinction Ratio | ER | 9 | - | - | dB |
| Optical Rise Time | - | - | - | 260 | ps |
| Optical Fall Time | - | - | - | 260 | ps |
| Optical Eye Diagram | Compliant with IEEE Std 802.3ahTM-2004 | ||||
| Tolerence to Tx Back Reflection | - | -15 | - | - | dB |
| Data Rate | - | - | 1.25 | - | Gb/s |
| Single Ended Data Input Voltage Swing | VPP | 200 | - | 1200 | mV |
| Differential Input Impedance | ZIN | 80 | 100 | 120 | ohm |
| Tx_fault Output Voltage- High | VOH | 2.4 | - | - | V |
| Tx_fault Output Voltage- Low | VOL | - | - | 0.4 | V |
| Tx_Dis Input Voltage- High | VIH | 2.0 | - | - | V |
| Tx_Dis Input Voltage- Low | VIL | - | - | 0.8 | V |

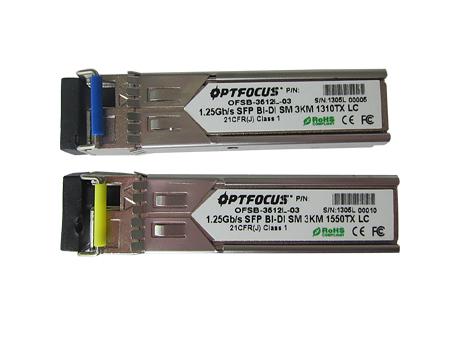

SFP Optical Transceiver image Details

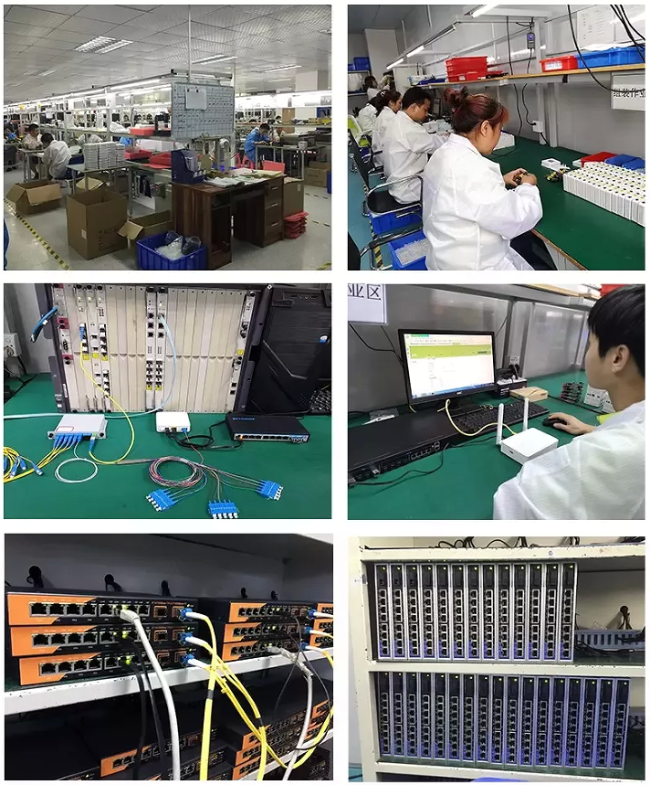

Company information
SFP Optical Transceiver Standard Application
- ATM SDH PDH SONET Network
- Data Communication Network
- Telecom Communication Network
FAQ
- Q:Are you trading company or manufacturer? A:We are factory. Q:How long is your delivery time?
- A:Generally it is 2-7 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.
- Q:Do you have MOQ?
- A:For stock products,we don't have MOQ. For custom product,we ask for low MOQ.
- Q:Can you offer a better price?Any discount?
- A:Yes,surely. We’re source factory and providing reasonable price.
- Q:What is your warranty period?
- A:Different products have different warranties.This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
