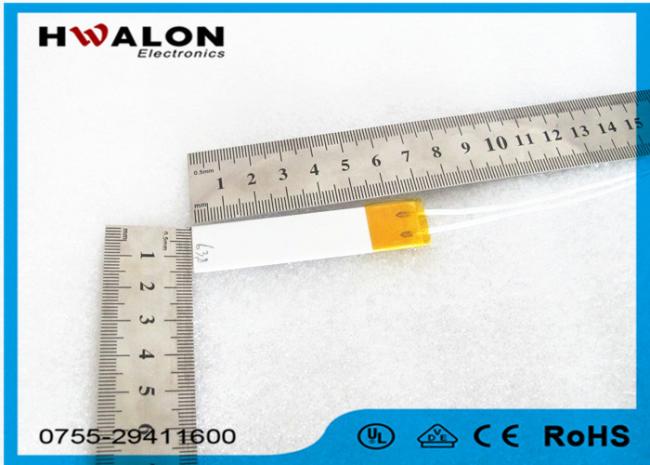

PTFE Sleeve Metal Ceramic Heater Thermistor 3.6V - 240V Rms Rated Voltage
PTFE Sleeve Metal Ceramic Heater Thermistor 3.6V - 240V Rms Rated Voltage
Description:
- Main raw material
- Basal plate: content is Not less than 95% white Al2O3 ceramic
- Lead: 0.5mm nickel wire or nickel-copper wire
- Sleeve: PTFE
- Heating material: tungsten
- Product performance
Our service:
1. Price advantages:reasonable and competitive;
2. We are manufacturer and possess strong strength;
3. We can supply you directly, save the agent fees and reduce your cost;
4. Big order comes with big discount, trial orders are also welcome;
5. Reply your enquiry within 24 hours;
6. Do our utmost to meet your demands, such as products information, sample, packing , price, shipping etc.
7. Deliver professional advice for you to buy a satisfactory product at a competitive price to meet your requirements as we can.
Competitive Advantage:
1. RoHS compliant
2. High heat efficiency
3. Good electric performance
4. Secure invalidation mode
5. Simple construction
6. Quick in temperature rise,reach to Rating 100℃~230℃ in 10sec.,reach to 500℃~700℃ in 30sec.
7. High thermal efficiency,energy conservation,non-pollution,ROHS compliance
8. Even heating,No open flame,Safety in use
9. Heating element in the local vacuum state,Heater, acid and alkali resistant and harmful gas
10. Long service life,The power attenuation is small
Feature:
1. RoHS compliant
2. High heat efficiency
3. Good electric performance
4. Secure invalidation mode
Applications:
| PTC heater(MCH) | Hair dryer,hair curler,hair straightener, hair apparatus |
1, Electrical performance
Insulation resistance: R≥5×108Ω(500VDC)
Withstand voltage strength: 1500VAC 1min.；1800VAC 1min.;
3750VAC 1min.；4000VAC 0.1min.;
The highest voltage: 230VAC/120VAC
2, physical performance
Volume density ≥ 3.6g/cm3
Flexure strength ≥ 270MPa
Compression strength ≥ 2700MPa
Lead strain:Along the horizontal direction lead no less than
5kgf,lead and basal plate in 90℃ direction,no less than 3.5kgf
3, Temperature performance
Rating working temp.: 100℃~230℃
Max. Temp.: 500℃~700℃
Heating rate: reach to Rating working temp.in 30sec.,reach to max. Temp.In 90sec.
Specifications:
1, 10×10×1.3 mm
|
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
|
10×10×1.3(2.0) |
24/12VAC |
9Ω |
10 |
10 |
1.3 |
75 |
0.5 |
|
10×10×1.3(2.0) |
24/12VAC |
13Ω |
10 |
10 |
1.3 |
75 |
0.5 |
2, 20×10×1.3 mm
|
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
|
20×10×1.3(2.0) |
24/12VAC |
10Ω |
20 |
10 |
1.3 |
75 |
0.5 |
|
20×10×1.3(2.0) |
24/12VAC |
15Ω |
20 |
10 |
1.3 |
75 |
0.5 |
|
20×10×1.3(2.0) |
24/12VAC |
20Ω |
20 |
10 |
1.3 |
75 |
0.5 |
3, 30×25×1.3 mm
|
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
|
30×25×1.3(2.0) |
24VAC |
20Ω |
30 |
25 |
1.3 |
75 |
0.5 |
|
30×25×1.3(2.0) |
24VAC |
25Ω |
30 |
25 |
1.3 |
75 |
0.5 |
|
30×25×1.3(2.0) |
24VAC |
30Ω |
30 |
25 |
1.3 |
75 |
0.5 |
|
30×25×1.3(2.0) |
24VAC |
35Ω |
30 |
25 |
1.3 |
75 |
0.5 |
4, 55×10×1.3 mm
|
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
|
55×10×1.3(2.0) |
3.7VAC |
0.3Ω |
55 |
10 |
1.3 |
75 |
0.5 |
|
55×10×1.3(2.0) |
3.7VAC |
0.35Ω |
55 |
10 |
1.3 |
75 |
0.5 |
|
55×10×1.3(2.0) |
3.7VAC |
0.4Ω |
55 |
10 |
1.3 |
75 |
0.5 |
|
55×10×1.3(2.0) |
3.7VAC |
0.5Ω |
55 |
10 |
1.3 |
75 |
0.5 |
5, 70×7×1.3 mm
|
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
|
70×7×1.3(2.0) |
220VAC |
180Ω |
70 |
7 |
1.3 |
75 |
0.5 |
|
70×7×1.3(2.0) |
220VAC |
150Ω |
70 |
7 |
1.3 |
75 |
0.5 |
|
70×7×1.3(2.0) |
220VAC |
140Ω |
70 |
7 |
1.3 |
75 |
0.5 |
|
70×7×1.3(2.0) |
220VAC |
120Ω |
70 |
7 |
1.3 |
75 |
0.5 |
|
70×7×1.3(2.0) |
220VAC |
110Ω |
70 |
7 |
1.3 |
75 |
0.5 |
|
70×7×1.3(2.0) |
110VAC |
80Ω |
70 |
7 |
1.3 |
75 |
0.5 |
|
70×7×1.3(2.0) |
110VAC |
60Ω |
70 |
7 |
1.3 |
75 |
0.5 |
|
70×7×1.3(2.0) |
110VAC |
40Ω |
70 |
7 |
1.3 |
75 |
0.5 |
6, 70×10×1.3 mm
|
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
|
70×10×1.3(2.0) |
220VAC |
180Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
220VAC |
150Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
220VAC |
140Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
220VAC |
120Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
220VAC |
110Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
110VAC |
80Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
110VAC |
60Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
110VAC |
40Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
3VAC |
2Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
12VAC |
6Ω |
70 |
10 |
1.3 |
75 |
0.5 |
|
70×10×1.3(2.0) |
12VAC |
10Ω |
70 |
10 |
1.3 |
75 |
0.5 |
7, 70×15×1.3 mm
|
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
|
70×15×1.3(2.0) |
220VAC |
180Ω |
70 |
15 |
1.3 |
75 |
0.5 |
|
70×15×1.3(2.0) |
220VAC |
150Ω |
70 |
15 |
1.3 |
75 |
0.5 |
|
70×15×1.3(2.0) |
220VAC |
140Ω |
70 |
15 |
1.3 |
75 |
0.5 |
|
70×15×1.3(2.0) |
220VAC |
120Ω |
70 |
15 |
1.3 |
75 |
0.5 |
|
70×15×1.3(2.0) |
220VAC |
110Ω |
70 |
15 |
1.3 |
75 |
0.5 |
|
70×15×1.3(2.0) |
110VAC |
80Ω |
70 |
15 |
1.3 |
75 |
0.5 |
|
70×15×1.3(2.0) |
110VAC |
60Ω |
70 |
15 |
1.3 |
75 |
0.5 |
|
70×15×1.3(2.0) |
12VAC |
3Ω |
70 |
15 |
1.3 |
75 |
0.5 |
8, 70×20×1.3 mm
|
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
|
70×20×1.3 |
220VAC |
180Ω |
70 |
20 |
1.3 |
75 |
0.5 |
|
70×20×1.3 |
220VAC |
150Ω |
70 |
20 |
1.3 |
75 |
0.5 |
|
70×20×1.3 |
110VAC |
60Ω |
70 |
20 |
1.3 |
75 |
0.5 |
|
70×20×1.3 |
110VAC |
40Ω |
70 |
20 |
1.3 |
75 |
0.5 |
9, PTC Heater in Circle Shape
|
Specification |
Model NO. |
Φb |
|
|
Ø25×1.3 |
12/24VAC |
13Ω |
0.5 |
|
Ø25×1.3 |
12/24VAC |
15Ω |
0.5 |
|
Ø25×1.3 |
12/24VAC |
19Ω |
0.5 |
10, PTC Heater in Ring Shape
|
Internal Dia. |
External Dia. |
Thickness |
Max. Voltage |
|
6.8mm |
14.25mm |
1.3mm |
7V |
11, PTC Heater in Round Shape
|
Specification |
Model NO. |
Φb |
|
|
Ø24×1.3 |
12VAC |
4-7Ω |
0.5 |
|
Ø24×1.3 |
24VAC |
9-12Ω |
0.5 |
High Quality MCH Ceramic Heater Ceramic Heater MCH for Hair Straightener
