Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type
Price:
Negotiable
MOQ:
5000pcs
Delivery Time:
Negotiable
Brand:
MOV
Product Description

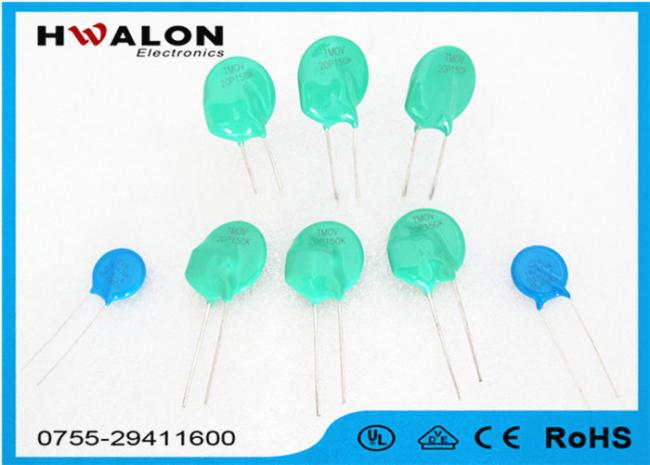

Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type
Describtion of Metal Oxide Varistor :
1. Radial leaded type
2. Many size choose 7mm, 10mm, 14mm, 20mm , 25mm and 32mm
3. VM(AC)RMS voltage range from 130V to 1000V
4. Energy absorption capability up to 360J
5. UL ,VDE ,CSA Certification
Specification of Metal Oxide Varistor MOV 20D511K:
| P/N | 20D511K |
| Size | 20mm |
| AC voltage | 320V |
| DC Voltage | 415V |
| Varistor Voltage | 510V(459-561) |
| Max Clamping Voltage/Current | 775V/25A |
| Max Peak Current(1 time) | 2500A |
| Max Peak Current(2 times) | 1250A |
| Capacitance | 150pf |
Parameters of Metal Oxide Varistor 20mm series:
| P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
| 20D180L | 11 | 14 | 18(15-21) | √ |
| 20D220K | 14 | 18 | 22(20-24) | √ |
| 20D270K | 17 | 22 | 27(24-30) | √ |
| 20D330K | 20 | 26 | 33(30-36) | √ |
| 20D390K | 25 | 31 | 39(35-43) | √ |
| 20D470K | 30 | 38 | 47(42-52) | √ |
| 20D560K | 35 | 45 | 56(50-62) | √ |
| 20D680K | 40 | 56 | 68(61-75) | √ |
| 20D820K | 50 | 65 | 82(74-90) | √ |
| 20D101K | 60 | 85 | 100(90-110) | √ |
| 20D121K | 75 | 100 | 120(108-132) | √ |
| 20D151K | 95 | 125 | 150(135-165) | √ |
| 20D181K | 115 | 150 | 180(162-198) | √ |
| 20D201K | 130 | 170 | 200(185-225) | √ |
| 20D221K | 140 | 180 | 220(198-242) | √ |
| 20D241K | 150 | 200 | 240(216-264) | √ |
| 20D271K | 175 | 225 | 270(243-297) | √ |
| 20D301K | 190 | 250 | 300(270-330) | √ |
| 20D331K | 210 | 275 | 330(297-363) | √ |
| 20D361K | 230 | 300 | 360(324-396) | √ |
| 20D391K | 250 | 320 | 390(351-429) | √ |
| 20D431K | 275 | 350 | 430(387-473) | √ |
| 20D471K | 300 | 385 | 470(423-517) | √ |
| 20D511K | 320 | 415 | 510(459-561) | √ |
| 20D561K | 350 | 460 | 560(504-616) | √ |
| 20D621K | 385 | 505 | 620(558-682) | √ |
| 20D681K | 420 | 560 | 680(612-748) | √ |
| 20D751K | 460 | 615 | 750(675-825) | √ |
| 20D781K | 485 | 640 | 780(702-858) | √ |
| 20D821K | 510 | 670 | 820(738-902) | √ |
| 20D911K | 550 | 745 | 910(819-1001) | √ |
| 20D102K | 625 | 825 | 1000(900-1100) | √ |
| 20D112K | 680 | 895 | 1100(990-1210) | √ |
| 20D122K | 750 | 990 | 1200(1080-1320) | √ |
| 20D182K | 1000 | 1465 | 1800(1620-1980) | √ |
Application of Metal Oxide Varistor:
Surge Protector Device,Motor Protector,Over-voltage Protector Device and Lightning Arrester ,etc
RFQ:
| Question | Answers | |
| 1 | What is the MOQ? | 5000pcs. |
| 2 | What is the payment terms? | Negotiation. |
| 3 | Can you accept special requirement? | Yes,we can.We can design for your special requirement. |
| 4 | Can you make the printing artworks(such as user manual/packing/rating label) in our language | Yes,we can.We do OEM for a long time |
| 5 | Can we order samples: | Yes ,you can . Free samples are available |
