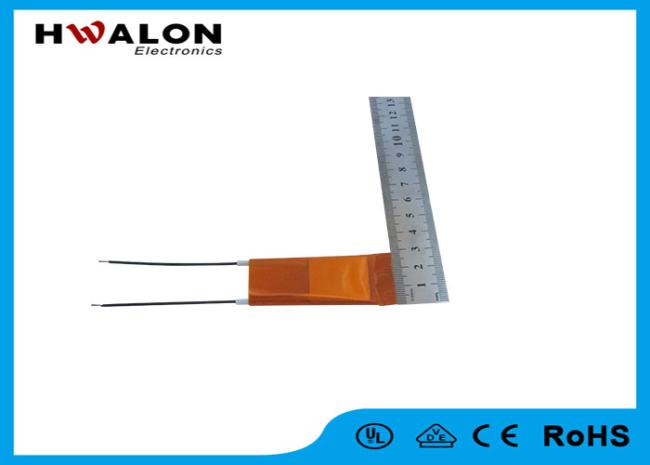

White Color Ptc Ceramic Heater Yellow Paper Wrapping Element For Hair Dryer
White Color Ptc Ceramic Heater Yellow Paper Wrapping Element For Hair Dryer
Features
1. With the characteristic of constant temperature, the PTC heater does not need the temperature-controlling system.
2. If the PTC heater is used to the heater the cold wind, it will not be destroyed when the wind is stopped.
3. If the PTC heater is used to heat the liquid, it will not be destroyed when the liquid is burnt to be dry.
4. Not sensitive to voltage fluctuating,and wide range of operating voltage.
5. Restore automatically after invalidation.
6. Insulated design,no fire hazard.
7. Designed with thermostat and fuses, protecting the products without getting any function failure.
Specification
|
Model No. |
Length(mm) |
Width(mm) |
Thickness(mm) |
Model No. |
Length(mm) |
Width(mm) |
Thickness(mm) |
|
1 |
15 |
10 |
2.8 ~ 3.6 |
23 |
48 |
10 |
2.8 ~ 3.6 |
|
2 |
16 |
11 |
2.8 ~ 3.6 |
24 |
48 |
15 |
2.8 ~ 3.6 |
|
3 |
18 |
5 |
2.8 - 3.6 |
25 |
48 |
7 |
2.8 ~ 3.6 |
|
4 |
18 |
15 |
2.8 ~ 3.6 |
26 |
48 |
30 |
2.8 ~ 3.6 |
|
5 |
24 |
7 |
2.8 ~ 3.6 |
27 |
48 |
45 |
2.8 ~ 3.6 |
|
6 |
24 |
10 |
2.8 ~ 3.6 |
28 |
50 |
27 |
2.8 ~ 3.6 |
|
7 |
24 |
15 |
2.8 ~ 3.6 |
29 |
60 |
8 |
2.8 ~ 3.6 |
Notice
1. Working Voltage rang 12 - 240 V AC / DC or customized
2. Surface Temperature 70°C ~ 300°C, the temperature tolerance less than ± 5°C.
3. The lead wire, fiber glass sleeve, insulate film and shells can customized according to per customers requirements.
Applications
1. shoe-drying apparatus, hair curling equipment
2. physical treatment, massage apparatus,biology heating
3. air-heating, wind-warming equipment, cold and warm air-conditioner
4. mosquito-driving apparatus, boiled-water equipment, heating board
Company information
Hwalon Electronic Limited with 15 years experience on NTC temperature sensor field.
1. Competitive price
2. On time handle over
3. Competitive price
4. Inquiry answered in 24hrs
5. Good team waiting here to serve for you
6. RoHS × UL compatible
7. OEM × ODM business accept
8. Main Market Europe,North America,Asia
How to Order
1. Application of the PTC heater _______
2. Working environment of the PTC heater ______
3. The range of operating temperature:___℃ to ____℃
×4. Dimension of the PTC heater _______
×5. R(25) Value _____
×6. Surface Temperature _____
×7. Rated Voltage _____
×8. Need insulated or not _____
× Fill “×” items necessarily
FAQ
|
|
Question |
Answers |
|
1 |
What is the MOQ? |
1000pcs. |
|
2 |
What is the payment terms? |
Negotiation. |
|
3 |
Can you accept special requirement? |
Yes,we can.We can design for your special requirement. |
|
4 |
Can you make the printing artworks |
Yes,we can.We do OEM work for long time |
|
5 |
Can we order samples: |
Yes ,you can . Free samples are available |
