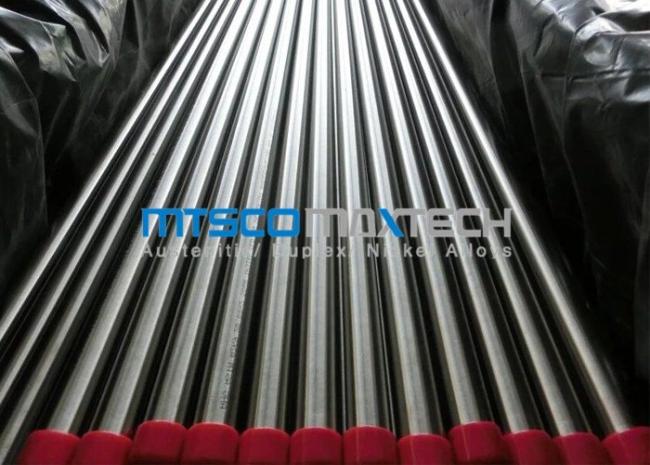

50mm x 5.2mm Hydraulic Tubing 320 # Outside Polished Tube Cold Drawn Technology
50mm x 5.2mm Hydraulic Tubing 320 # Outside Polished Tube Cold Drawn Technology
Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .
Applications :
1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry
|
Grade |
304 , 304L , 304H , 310S , 316 , 316L , 316Ti , 321 , 321H , 347 , 347H , etc |
|
Standard |
ASTM A270 ; ASTM A269 ; ASTM A312 ;ASTM A249 ; EN10216-5 , ect . |
|
Size |
OD : 3.18 - 101.6mm |
|
WT : 0.5- 20mm |
|
|
Length : 1m to 12m or as per customers’ requirement |
|
|
Advantage |
Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment |
Specification :
|
|
OD : 4.76 - 25.4mm |
|
WT : 0.71 - 2.11mm |
|
|
Length : >1000Meters |
|
|
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm |
|
|
6 * 1mm / 6 * 1.5mm |
|
|
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm |
|
|
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm |
|
|
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm |
|
|
10 * 1mm / 10 * 1.5mm |
|
|
12 * 1mm / 12 * 1.5mm / 12 * 2mm |
|
|
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm |
|
|
14 * 1mm / 14 * 1.5mm / 14 * 2mm |
|
|
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm |
|
|
16 * 1mm / 16 * 1.5mm / 16 * 2mm |
|
|
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm |
|
|
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
Chemical Composition —— Basic Raw Materials
|
ASTM/UNS |
C (max) |
Si (max) |
Mn (max) |
P (max) |
S (max) |
Cr |
Ni |
Mo |
Ti |
|
TP304 / S30400 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
8.0-10.5 |
|
|
|
TP304L / S30403 |
0.035 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
8.0-13.0 |
|
|
|
TP304H / S30409 |
0.04-0.10 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
8.0-11.0 |
|
|
|
TP316 / S31600 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
16.0-18.0 |
11.0-14.0 |
2.0-3.0 |
|
|
TP316L / S31603 |
0.035 |
1.00 |
2.00 |
0.045 |
0.03 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
|
TP316Ti / S31635 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
0.7>5x(C+N) |
|
TP321 / S32100 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
17.0-19.0 |
9.0-12.0 |
|
0.7>5x(C+N) |
|
TP317L / S31703 |
0.035 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
11.0-15.0 |
3.0-4.0 |
|
|
TP347H / S34709 |
0.04-0.10 |
1.00 |
2.00 |
0.045 |
0.03 |
17.0-19.0 |
9.0-13.0 |
|
|
|
TP309S / S30908 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
22.0-24.0 |
12.0-15.0 |
0.75 |
|
|
TP310S / S31008 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
24.0-26.0 |
19.0-22.0 |
0.75 |
|
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
