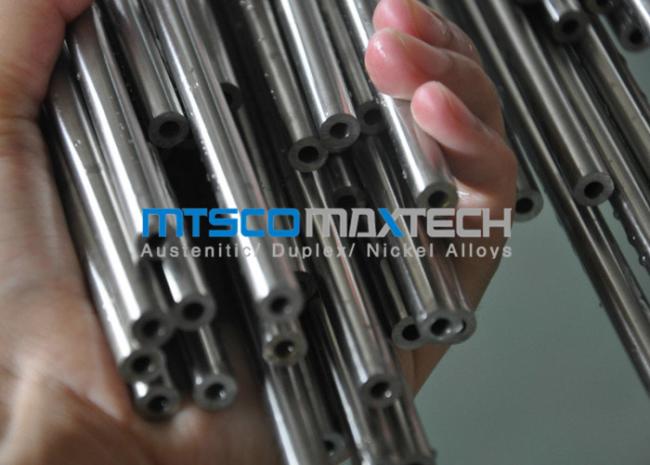

High Temperature Precision Stainless Steel Tubing ASTM A269 304L Thick Wall
High Temperature Precision Stainless Steel Tubing ASTM A269 304L Thick Wall
MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .
Specification :
|
|
OD : 4.76 - 25.4mm |
|
WT : 0.71 - 2.11mm |
|
|
Length : According to clients requirement |
|
|
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm |
|
|
6 * 1mm / 6 * 1.5mm |
|
|
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm |
|
|
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm |
|
|
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm |
|
|
10 * 1mm / 10 * 1.5mm |
|
|
12 * 1mm / 12 * 1.5mm / 12 * 2mm |
|
|
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm |
|
|
14 * 1mm / 14 * 1.5mm / 14 * 2mm |
|
|
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm |
|
|
16 * 1mm / 16 * 1.5mm / 16 * 2mm |
|
|
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm |
|
|
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
| Applications : |
| 1) . Petroleum , Chemical enterprise , Superheater of boiler , Heat exchanger |
| 2) . High temperature resistant transmission fluid pipe in power station |
| 3) . Ship with pressure pipe |
| 4) . The exhaust purification device |
| 5) . Construction and ornament : Escalator , Elevator , Doors Production tools , Kitchen appliances , Freezers , Cold rooms |
| 6) . Equipment and Medical devices |
Chemical Composition :
| ASTM A269 | |
| Elements | 304L ( wt% ) |
| (C) Carbon, max | 0.035 |
| (Mn) Manganese, max | 2 |
| (P) Phosphorus, max | 0.045 |
| (S) Sulfur, max | 0.03 |
| (Si) Silicon, max | 1 |
| (Ni) Nickel | 8.0 - 12.0 |
| (Cr) Chromium | 18.0 - 20.0 |
| (Mo) Molybdenum | N/A |
| (Fe) Iron | Bal. |
| (Cu) Copper | N/A |
| (N) Nitrogen | N/A |
Test :
1 . NTD ( Ultrasonic test , Eddy Current test )
2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
3 . Metal Test ( Metallographic Analysis , Impact Test-High / low temperature )
4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )
Main Market :
MTSCO tubes main market include Europe , Middle East , Southeast Asia , South America etc .
