Stainless Steel Cold Drawn Tube ASTM A213 / ASME SA213-10a TP304L
Stainless Steel Cold Drawn Tube ASTM A213 / ASME SA213-10a TP304L
ASTM A 213 / A 213M ASME SA213 / SA213M Specification for Seamless Ferric and Austenitic Alloy -Steel Boiler , Su[perheater , and Heat-Exchanger Tubes
ASTM A 249 / A 249M Specification for Welded Austenitic Steel Boiler , Superheater , Heat-Exchanger , and Condenser tubes
|
Size |
OD : 25.4mm |
|
WT : 2.11 |
|
|
Length : 12192mm |
|
|
Advantage |
Superior surface finish , better mechanical property ; more precise dimension ; perfect inspection method and inspection equipment |
|
Application |
Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 . |
|
Package |
Plywood case |
ASTM A213 / A213M Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A |
N/A |

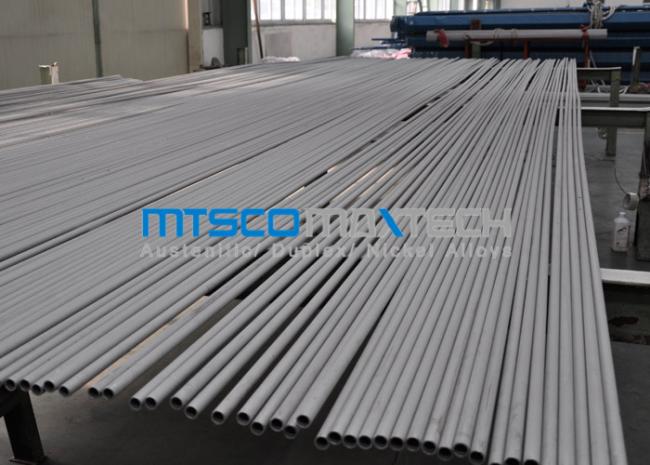

MTSCO heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .
