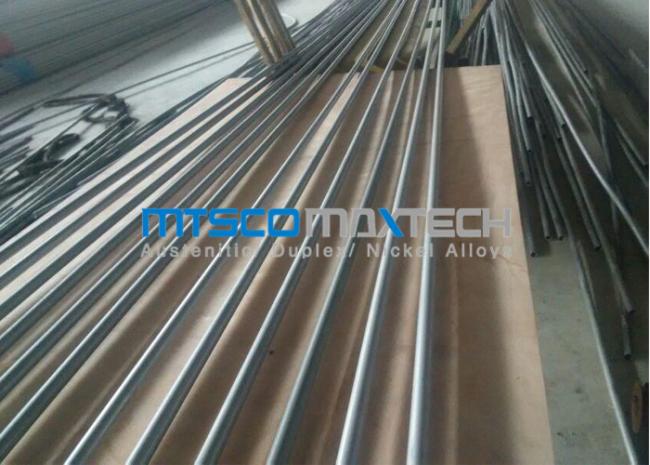

TP310S Stainless Steel Seamless Tube with Hydraulic Testing ISO 9001 / PED
TP310S Stainless Steel Seamless Tube , Hydraulic Test , ISO 9001 / PED
|
Item |
Description |
|
|
Basic Information |
Material Grade |
TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc |
|
Outer Diameter |
6.00mm - 48.00mm |
|
|
Wall Thickness |
0.71mm - 2.11mm |
|
|
Length |
Normally fixed length 6m , can as per customer’s requirement |
|
|
Standard |
ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect . |
|
|
Process Method |
Cold Drawn or Cold Rolled |
|
ASME SA213 / A213 : Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler , Superheater and Stainless Steel Heat Exchanger Tubes .
ASTM A249 / A249M : Standard Specification for Welded Austenitic Steel Boiler , Superheater Heat-Exchanger , and Condenser Tubes .
ASTM A213 / A213M Standard Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
Application :
1 . For fluid & gas transport
2 . Petrochemical
3 . Environmental protection
4 . Structure & Machining
5 . Electricity
6 . Instrument industry etc
