ASTM A403 Stainless Steel Pipe Fitting
Price:
6000-17000USD/TON
MOQ:
negotiable
Delivery Time:
30 Days
Brand:
MTSCO
Product Description

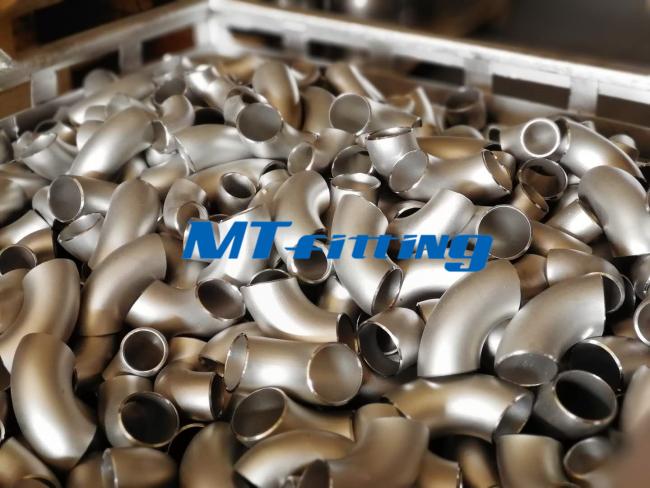

ASTM A403 Stainless Steel Pipe Fitting , BW ( Butt Welded ) Fittings
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
| 1 . Commodity: Concentric Reducer & Eccentric Reducer , Reducing Tee & Equal Tee, Elbow 45° , 90° , 180° , Cross , Cap , etc |
| 2 . Process Method : Cold Forming |
| 3 . Materials : Stainless Steel , Duplex Steel , etc |
| 4 . Standards : ASME / ANSI B16.9 , B16.28 , ASTM A403 , DIN 2605 , DIN 2609 , DIN 2615 , etc |
| 5 . Size Range : |
| Seamless type: 1/2’’-48’’, DN15-DN50000 |
| Welded type: 1/2’’-20’’ DN15-DN1200 |
| 6 . Tolerances : according to the specification or customer’s request and drawings |
| 7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc . |
ASTM A403 Standard Chemical Composition :
| Elements | WP304L(wt%) / CR304L / S30403 | 304(wt%) / CR304 / S30400 | 316L (wt%) / CR316L /S31603 | 316 (wt%) / CR316 / S31600 |
| (C) Carbon, max | 0.03 | 0.08 | 0.03 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
| Item | Description | |
| Basic Information | Material Grade | TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , etc |
| Size | 1/2" to 48" Sch 5S to XXS | |
| Standard | ASTM A403 ASME / ANSI B16.5 etc . | |
| Process Method | Forged / Casting | |
| Industry & Advantage | Application | a) Connect pipes |
| Advantage | a) High technology ; good surface ; high quality etc | |
| Terms & Conditions | Price Item | FOB , CFR , CIF or as negotiation |
| Payment | T / T , LC or as negotiation | |
| Delivery Time | 30 working days after received your deposit ( Normally according to the order quantity ) | |
| Package | Plywood case or as per customer’s requirement | |
| Quality Requirement | Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable | |
| Quality | Test | 100% PMI test ; Size test etc |
| Market | Main Market | Europe , Middle East , Southeast Asia , South America . Etc |
