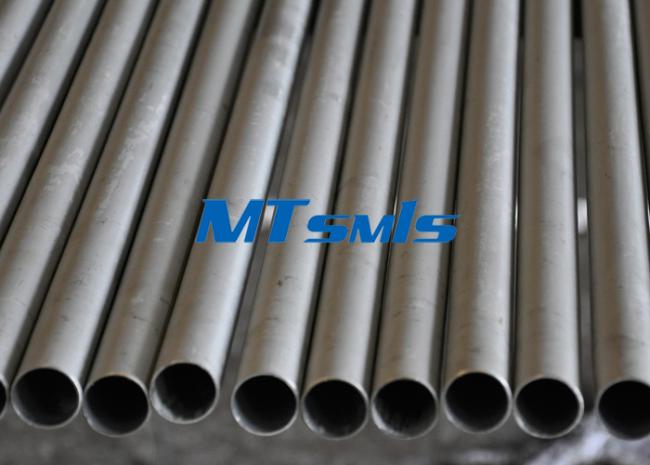

1 1 / 2 Inch X 0.14 Inch ASTM A790 Duplex Stainless Steel Pipe Cold Rolled
Price:
5000-9000USD/TON
MOQ:
negotiable
Delivery Time:
30 Days
Brand:
MTSCO
Product Description
1 1 / 2 Inch X 0.14 Inch ASTM A790 Duplex Stainless Steel Pipe Cold Rolled
| Item | Description | |
| Basic Information | Material Grade | S32205, S31803, S32304, S32750, F51, F53, 2205, 2507 etc |
| Outer Diameter | 10.3mm-1219mm | |
| Wall Thickness | 1.24mm-59.54mm | |
| Length | Normally fixed length 6m, can as per customer’s requirement | |
| Standard | ASTM A789; ASTM A790; EN 10216-5ect. | |
| Process Method | Cold Drawn or Cold Rolled | |
| Industry & Advantage | Application | a) Petroleum |
| b) Chemical industry | ||
| c) Instrument | ||
| d) Industrial transportation | ||
| e) Mechanical structure industry | ||
| f) Need high corrision ability pipe's industry, such as offshore industry etc | ||
| Advantages | a) Superior surface finish, | |
| b) Better mechanical property | ||
| c) More precise dimension | ||
| d) Perfect inspection method and inspection equipment |
||
Specifications :
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright
annealed tubes , seamless coiled tubing etc basic products . We also have duplex stainless steel tubes and
pipes , nickel alloy tubes and pipes etc . MTSCO has the most advanced producing and testing
equipment. We can totally satisfy your requirement .
According to standard very strictly , duplex steel tubes which produced by us always have correct OD and WT
tolerance . And they have more perfect corrosion ability .
