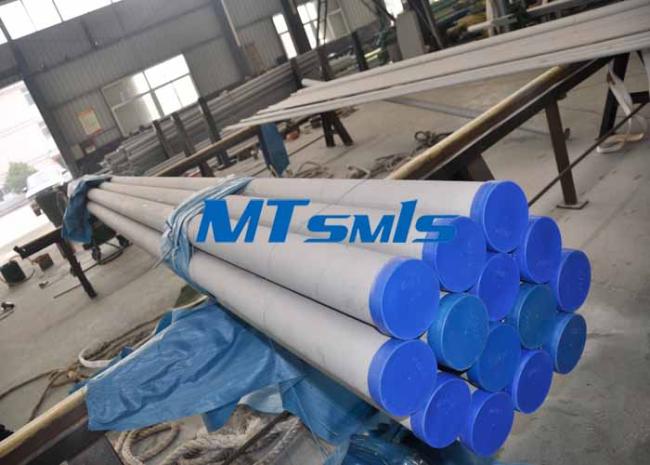

Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG
EN10216-5 TP317 / 347H Stainless Steel Pipe , 14BWG, 18BWG, 20BWG
Chemical Composition
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
|
Industry & Advantage |
Application |
a) For fluid & gas transport |
|
b) Structure & machining etc |
||
|
Advantages |
a) Advanced technology of cold draw machine |
|
|
b) Advanced annealing machine |
||
|
c) Better mechanical property |
||
|
d) More precise dimension |
||
|
e) Perfect inspection method and inspection equipment etc |
| Birmingham Wire Gauge BWG | |||||
| Wall Thickness | Wall Thickness | ||||
| BWG | IN | MM | BWG | IN | MM |
| - | - | - | 19 | 0.042 | 1.07 |
| - | - | - | 20 | 0.035 | 0.89 |
| 14 | 0.083 | 2.11 | - | - | - |
| 15 | 0.072 | 1.83 | - | - | - |
| 16 | 0.065 | 1.65 | - | - | - |
| 17 | 0.058 | 1.47 | - | - | - |
| 18 | 0.049 | 1.24 | - | - | - |
MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
