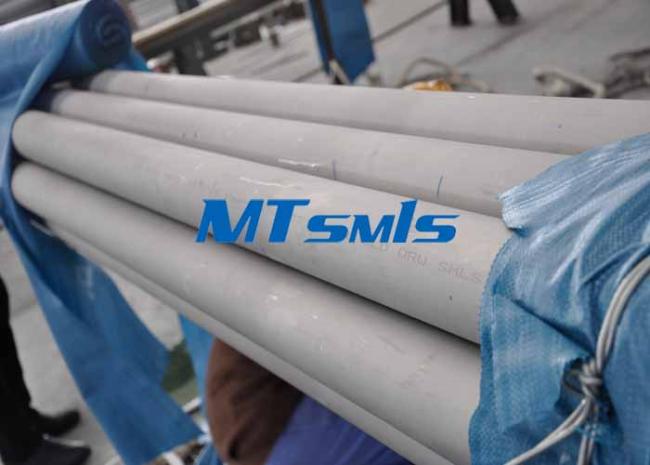

ASTM A269 TP309S / 310S / 317L Seamless Stainless Steel Pipe With Pickled Surface
ASTM A269 TP309S / 310S / 317L Stainless Steel Seamless Pipe With Pickled Surface
Product Description:
| Outer Diameter | 10.3-1219mm |
| Wall Thickness | 1.24-59.54mm (0.04''-2'' ) |
| NPS | 1/8"-24" |
| Schedule | 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S |
| Material Grade | 304/304L/316/316L/321/309S/310S, etc |
| Standard | ASTM A269, ASTM A312, etc |
| Application | used in Fluid and Gas Transport, Structure and Machining,etc |
| Certificates | ISO9001:2008, PED, BV |
| Process Method | Cold Drawn/ Cold Rolled |
| Surface Finish | Annealed/ Polished |
| Package | Woven bag for each piece, then packed in seaworthy wooden cases |
| Delivery Time | 20-60 Days after receiving the deposit (Normally according to the order quantity) |
| Price Item | FOB, CIF or as negotiation |
| Payment | T/T(30% in advance, 70% against the BL Copy) or as negotiation |
| Quality Requirement | Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable |
| Main Market | Europe, Middle East, Southeast Asia, South America, etc |
Chemical Composition:
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
