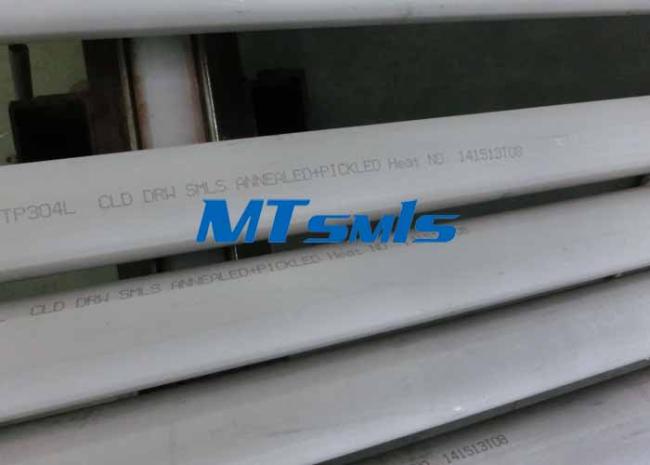

DN 60 80 100 Stainless Steel Annealed & Pickled Seamless Pipe For Gas Transportation
DN60, 80, 100 Stainless Steel Annealed & Pickled Seamless Pipe For Fuild And Gas Transportation
Specifications :
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| Project | Standard | ASTM A269/A269M | ASTM A312/A312M | ASTM A213/A213M | ASTM A789/789M | ASTM A790/790M |
| Grade |
TP304 TP304L TP321 TP316 TP316L TP317 TP321 TP347 N08904/904L |
TP304 TP304L TP309S TP310S TP316 TP316L TP316Ti TP317 TP317L TP321 TP347 |
TP304 TP304L TP309S TP316 TP316L TP316Ti TP317 TP310S TP321 TP347
|
S32250 S31803 S32750 |
S32250 S31803 S32750
|
|
| Size |
NPS:1/8”-48” SCH:5S,10/10S,20,30,40/40S,60,80/80S,100,120,140,160,STD,XS,XXS OD:10.3mm-1219mm WT:1.24mm-59.54mm |
|||||
| Length | According to customer’s request, Max. 18Meters. | |||||
|
Industry & Advantage |
Application |
a) For fluid & gas transport |
|
b) Structure & machining etc |
||
|
Advantages |
a) Advanced technology of cold draw machine |
|
|
b) Advanced annealing machine |
||
|
c) Better mechanical property |
||
|
d) More precise dimension |
||
|
e) Perfect inspection method and inspection equipment etc |
MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
