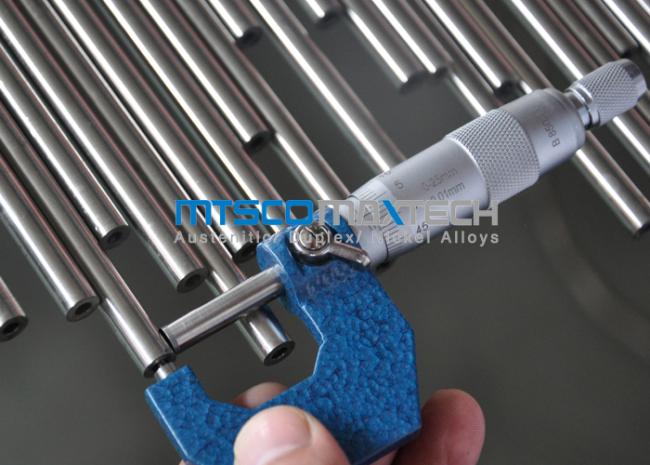

Polished Stainless Steel Tubing , 1.4404 / 316L Precision SS Pipe For Medical Devices
1.4404 / 316L Cold Rolled Stainless Steel Precision Tube Mesh Belt Furnace Annealing
| Applications : |
| 1) . Petroleum , Chemical enterprise , Superheater of boiler , Heat exchanger |
| 2) . High temperature resistant transmission fluid pipe in power station |
| 3) . Ship with pressure pipe |
| 4) . The exhaust purification device |
| 5) . Construction and ornament : Escalator , Elevator , Doors Production tools , Kitchen appliances , Freezers , Cold rooms |
| 6) . Equipment and Medical devices |
ASTM A213 / A213M Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
|
Grade
|
TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H |
|
Standard
|
ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc |
| Size | OD:3.18-101.6mm |
| WT:0.5-20mm | |
| Length:Max.12M | |
| Advantage | Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment |
| Application |
Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature resistant,low temperature resistant,corrosion resistant.The size can be made according to the customers requirements.High pressure boiler pipe applies to container,petrochemical and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650. |
| Package | Plastic in both ends, then packed in iron case |
Test :
1 . NTD ( Ultrasonic test , Eddy Current test )
2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
3 . Metal Test ( Metallographic Analysis , Impact Test-High / low temperature )
4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )
MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .
