S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport
Price:
4300-9800USD/TON
MOQ:
negotiable
Delivery Time:
30 Days
Brand:
MTSCO
Product Description

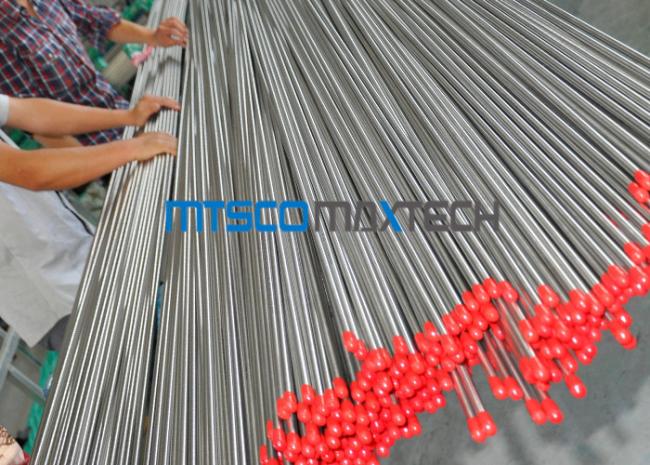

1 Inch S31600 / S31603 High Pressure Stainless Steel Seamless Tubing With Bright Annealed Surface
| Item | Description | |
| Basic Information | Material Grade | TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc |
| Outer Diameter | 3.18-101.6mm | |
| Wall Thickness | 0.5-20mm | |
| Length | Normally fixed length 6m , can as per customer’s requirement | |
| Standard | ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect . | |
| Process Method | Cold Drawn or Cold Rolled | |
| Industry & Advantage | Application | a) For fluid & gas transport |
| b) Structure & machining | ||
| c) Petrochemical | ||
| d) Environmental protection | ||
| e) Electricity | ||
| f) Instrument industry etc | ||
| Advantages | a) Superior surface finish | |
| b) Better mechanical property | ||
| c) More precise dimension | ||
| d) Perfect inspection method and inspection equipment | ||
Specifications :
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
ASTM A269 STANDARD :
| Elements | 304L(wt%) S30403 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A |
