1 / 4 Inch TP304 / 304L stainless steel seamless tubing For Oil And Gas
1 / 4 Inch TP304 / 304L stainless steel seamless tubing For Oil And Gas
1 . Surface Finish : Pickling or Bright annealing . Polished Grade : 180 # 320 # 400 # 600 # 800 #
2 . Delivery Conditions : Soft / Hard
3 . Materials : TP304 / 304L ; TP316 / 316L / TP316Ti ; TP321 / 321H ; TP310S ; TP317 / 317L ; TP347 / 347H ;
Duplex Steel : S31803 / S2205 ; Super - duplex steel : S32750 / S32760 ; Nickel alloys ; Chromium alloys ; Monel etc .
4 . Standards : GB / T13296 / 14975 / 14976 ; ASTM A213 / A269 / A312 / A511 / A789 ; DIN2462 / 17458 / 17456 etc
5 . Size : OD. : Φ3.18mm - 101.6mm , WT.:0.5mm - 20mm
6 . Tolerances: ± 0.05mm Or according to customer’s request
7 . Length : Stainless steel straight bright annealed tubes : 1-30 meters
Stainless steel coiled tubing : 1-1000 meters
8 . Applications : For military products , semiconductor , pharmaceutical biotechnology , precision instruments , hydraulic parts , chemicals industry , boilers and heat exchangers , aerospace industry , automotive industry , electronics , petroleum exploration , precision machinery , rail transportation , shipbuilding plants , air -conditioning industry , solar industry , water heater industry etc .
Specifications :
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |

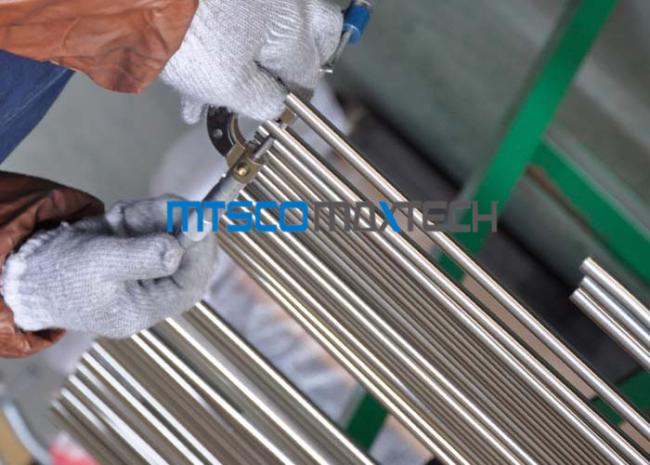

MTSCO has been dedicated to producing stainless steel seamless bright annealed tubes since 2014 , owning complete producing technology and abundant managing experience . And the raw material of stainless steel seamless tube such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc . Also we have advanced NDT equipments for the tests such as Eddy Current test , Ultrasonic test , Hydraulic test and so on . Welcome you contact us in free !
Main Products : Heat exchanger tubes , U-bent tubing , stainless steel bright tubes , clamp flexible tubing , seamless precision tubes , seamless coiled tubing , super-long coiled tubing etc .
