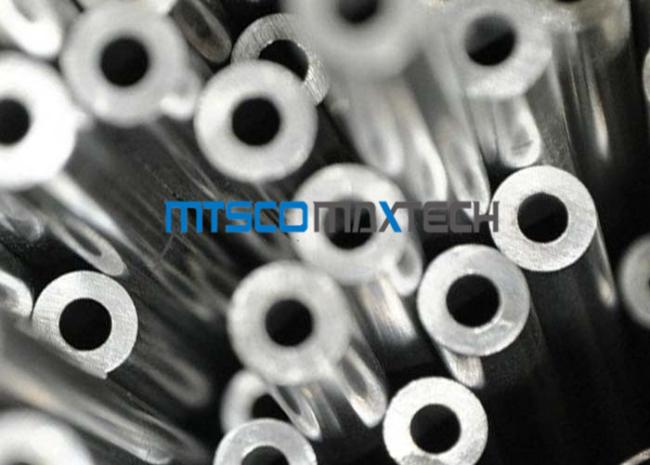

1 / 2 Inch Sch80s ASTM A269 Bright Annealed Stainless Steel Sanitary Pipe
1 / 2 Inch Sch80s ASTM A269 Bright Annealed Stainless Steel Sanitary Tube
Bright annealed sanitary tube has very clean inner surface . MTSCO has our own high technology , when tubes have been produced they already have cleaned inner surface , even though we haven’t cleaned them . Of cause , we’ll do clean later . So when we finished clean process , the tubes are totally clean enough !
| Material | ASTM A269 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^ . | ^ |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
Specifications :
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| Item | Description | |
| Basic Information | Material Grade | TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc |
| Outer Diameter | 3.18-101.6mm | |
| Wall Thickness | 0.5-20mm | |
| Length | Normally fixed length 6m , can as per customer’s requirement | |
| Standard | ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect . | |
| Process Method | Cold Drawn or Cold Rolled | |
| Industry & Advantage | Application | a) For fluid & gas transport |
| b) Structure & machining | ||
| c) Petrochemical | ||
| d) Environmental protection | ||
| e) Electricity | ||
| f) Instrument industry etc | ||
| Advantages | a) Superior surface finish | |
| b) Better mechanical property | ||
| c) More precise dimension | ||
| d) Perfect inspection method and inspection equipment | ||
MTSCO tubes can be used in General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear ) , fuild & gas & oil transport industries , pressure and heat transmission industries , construction and ornament industries , boiler and heat exchangers industries , decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) etc .
