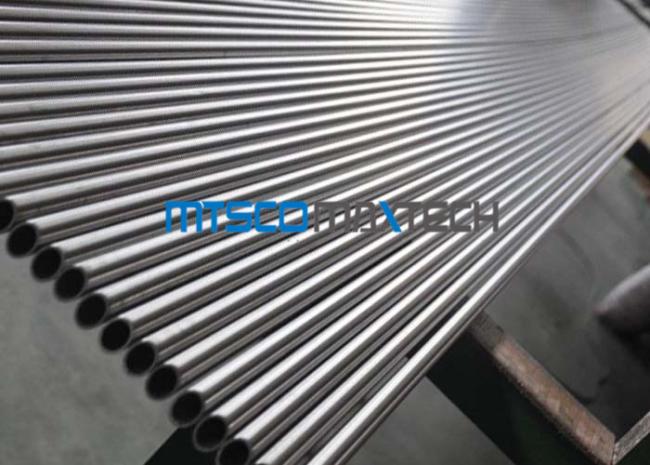

ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
ASTM A269 / A213 Stainless Steel Precision Seamless Tube With Cold Rolled For Chemical
MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .
Test :
1 . NTD ( Ultrasonic test , Eddy Current test )
2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
3 . Metal Test ( Metallographic Analysis , Impact Test-High / low temperature )
4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )
Main Market :
MTSCO tubes main market include Europe , Middle East , Southeast Asia , South America etc .
| Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG | |||||
| SWG | Wall Thickness | SWG | Wall Thickness | ||
| 0 | 0.324 | 8.23 | 21 | 0.032 | 0.81 |
| 1 | 0.3 | 7.62 | 22 | 0.028 | 0.71 |
| 2 | 0.276 | 7.01 | 23 | 0.024 | 0.61 |
| 3 | 0.252 | 6.4 | 24 | 0.022 | 0.56 |
| 4 | 0.232 | 5.89 | 25 | 0.02 | 0.51 |
| 5 | 0.212 | 5.38 | 26 | 0.018 | 0.46 |
| 6 | 0.192 | 4.88 | 27 | 0.0164 | 0.42 |
| 7 | 0.176 | 4.47 | 28 | 0.0148 | 0.38 |
| 8 | 0.16 | 4.06 | 29 | 0.0136 | 0.35 |
| 9 | 0.144 | 3.66 | 30 | 0.0124 | 0.31 |
| 10 | 0.128 | 3.25 | 31 | 0.0116 | 0.29 |
| 11 | 0.116 | 2.95 | 32 | 0.0108 | 0.27 |
| 12 | 0.104 | 2.64 | 33 | 0.01 | 0.25 |
| 13 | 0.092 | 2.34 | 34 | 0.0092 | 0.23 |
| 14 | 0.08 | 2.03 | 35 | 0.0084 | 0.21 |
| 15 | 0.072 | 1.83 | 36 | 0.0076 | 0.19 |
| 16 | 0.064 | 1.63 | 37 | 0.0068 | 0.17 |
| 17 | 0.056 | 1.42 | 38 | 0.006 | 0.15 |
| 18 | 0.048 | 1.22 | 39 | 0.0052 | 0.13 |
| 19 | 0.04 | 1.02 | 40 | 0.0048 | 0.12 |
| 20 | 0.036 | 0.91 | |||
EN10216-5 Standard Chemical Composition :
| Steel Grade | C | Si | Mn | P | S | N | Cr | Cu | Mo | Nb | Ni | Ti | Others | |
| max | max | max | ||||||||||||
| Steel Name | Steel Number | |||||||||||||
| X2CrNi19-11 | 1.4306 | 0.03 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 18.00 - 20.00 | - | - | - | 8.00 - 10.00 | - | - |
| X5CrNi18-10 | 1.4301 | 0.07 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 17.00 - 19.50 | - | - | - | 8.00 - 10.50 | - | - |
| X6CrNiTi18-10 | 1.4541 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 17.00 - 19.00 | - | - | - | 9.00 - 12.00 | 5xC to 0.70 | - |
| X6CrNiNb18-10 | 1.4550 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | - | 17.00 - 19.00 | - | - | 10xC to 1.00 | 9.00 - 12.00 | - | - |
| X2CrNiMo17-12-2 | 1.4404 | 0.03 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X5CrNiMo17-12-2 | 1.4401 | 0.07 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X6CrNiMoTi17-12-2 | 1.4571 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | - | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.50 - 13.50 | 5xC to 0.70 | - |
Chemical Composition
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
