TP309S / 310S EN10216-5 Hydraulic Tubing Precise Dimension For Chemical Industry
TP309S / 310S EN10216-5 Hydraulic Tubing With Precise Dimension For Chemical Industry
|
Grade
|
TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H |
|
Standard
|
ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc |
| Size | OD:3.18-101.6mm |
| WT:0.5-20mm | |
| Length:Max.12M | |
| Advantage | Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment |
| Application |
Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature resistant,low temperature resistant,corrosion resistant.The size can be made according to the customers requirements.High pressure boiler pipe applies to container,petrochemical and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650. |
| Package | Plastic in both ends, then packed in iron case |
EN10216-5 Standard Chemical Composition :
| Steel Grade | C | Si | Mn | P | S | N | Cr | Cu | Mo | Nb | Ni | Ti | Others | |
| max | max | max | ||||||||||||
| Steel Name | Steel Number | |||||||||||||
| X2CrNi19-11 | 1.4306 | 0.03 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 18.00 - 20.00 | - | - | - | 8.00 - 10.00 | - | - |
| X5CrNi18-10 | 1.4301 | 0.07 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 17.00 - 19.50 | - | - | - | 8.00 - 10.50 | - | - |
| X6CrNiTi18-10 | 1.4541 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 17.00 - 19.00 | - | - | - | 9.00 - 12.00 | 5xC to 0.70 | - |
| X6CrNiNb18-10 | 1.4550 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | - | 17.00 - 19.00 | - | - | 10xC to 1.00 | 9.00 - 12.00 | - | - |
| X2CrNiMo17-12-2 | 1.4404 | 0.03 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X5CrNiMo17-12-2 | 1.4401 | 0.07 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X6CrNiMoTi17-12-2 | 1.4571 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | - | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.50 - 13.50 | 5xC to 0.70 | - |
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .

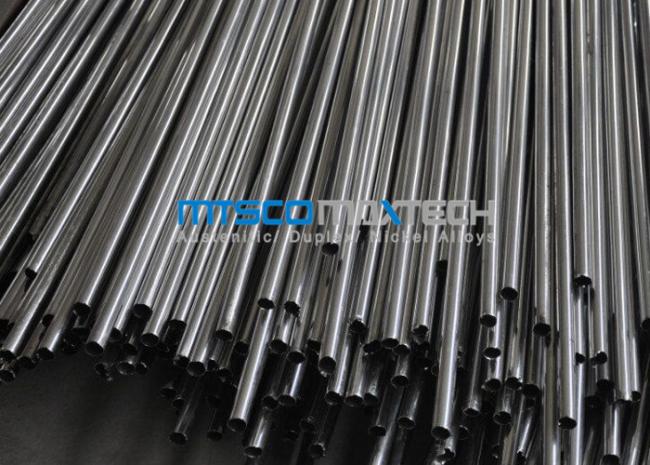

Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .
