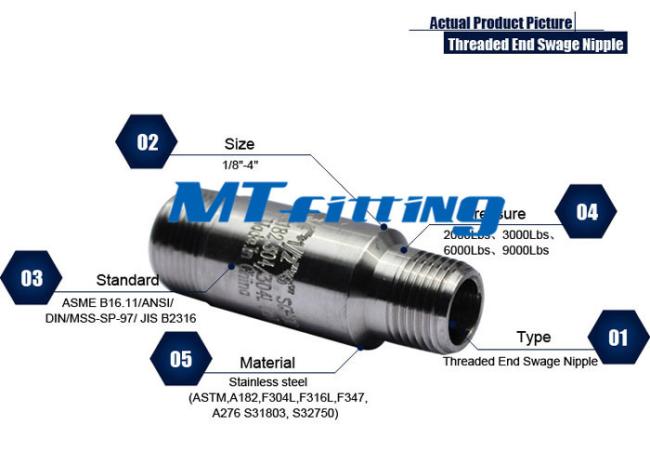

High Pressure S31803 ASTM A182 Stainless Steel Swage Nipples 6000LBS With Threaded End
High Pressure S31803 ASTM A182 Stainless Steel Swage Nipple 6000LBS With Threaded End
1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
2 . Process Method : Forged
3 . Materials : Stainless Steel ,Carbon steel, etc
4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.
5 . Size Range : NPS 1 / 8 inch- 4 inch
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .
| Material Grade | F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc. |
| Size | NPS 1 / 8 inch- 4 inch |
| Standard | ASME B16.11 |
| Process Method | Forged / Casting |
ASTM A182 / A182M Standard Chemical Composition :
| Elements | 304L(wt%) / F304L / S30403 | 304(wt%) / F340 / S30400 | 316L (wt%) / F316L /S31603 | 316 (wt%) / F316 / S31600 | 310 (wt%) / F310 / S31000 |
| (C) Carbon, max | 0.03 | 0.08 | 0.03 | 0.08 | 0.25 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 13.0 | 8.0 - 11.0 | 10.0 - 15.0 | 10.0 - 14.0 | 19.0 - 22.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 | 24.0 - 26.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 | N/A |
| (Fe) Iron | N/A | N/A | N/A | N/A | N/A |
| (Cu) Copper | N/A | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A | N/A |
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
