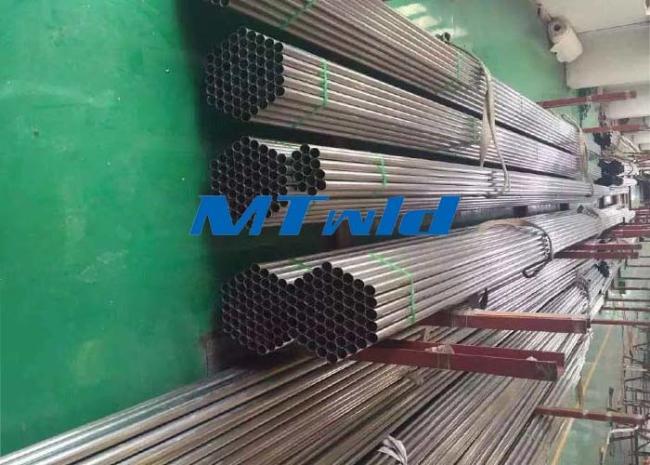

TP316 / 316L Stainless Steel Welded Tube For Mechanical And Structure Purposes
TP316 / 316L Stainless Steel Welded Tube For Mechanical And Structure Purposes
1 . OD ( Outer Diameter ) : 9.5mm to 406.4mm
2 . WT ( Wall Thickness ) : 0.8mm to 8mm
3 . Length : According to customer's requirement
4 . Standards : ASTM A312; ASTM A269; ASTM A789; ASTM A790 etc.
5 . Process Method : ERW, EFW etc
Material Grade :
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
|
Application : |
a) For fluid and gas transport |
|
b) Structure and machining |
|
|
c) Heat exchanger pipes etc |
|
|
Advantages : |
a) Superior surface finish |
|
b) Better mechanical property |
|
|
c) More precise dimension |
|
|
d) Perfect inspection method and inspection equipment |
ASTM A269 Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have welded pipes and tubes too . MTSCO has the most advanced producing and testing equipment . Our products are always satisfied with customers . Customers purchased our products created more profits .
