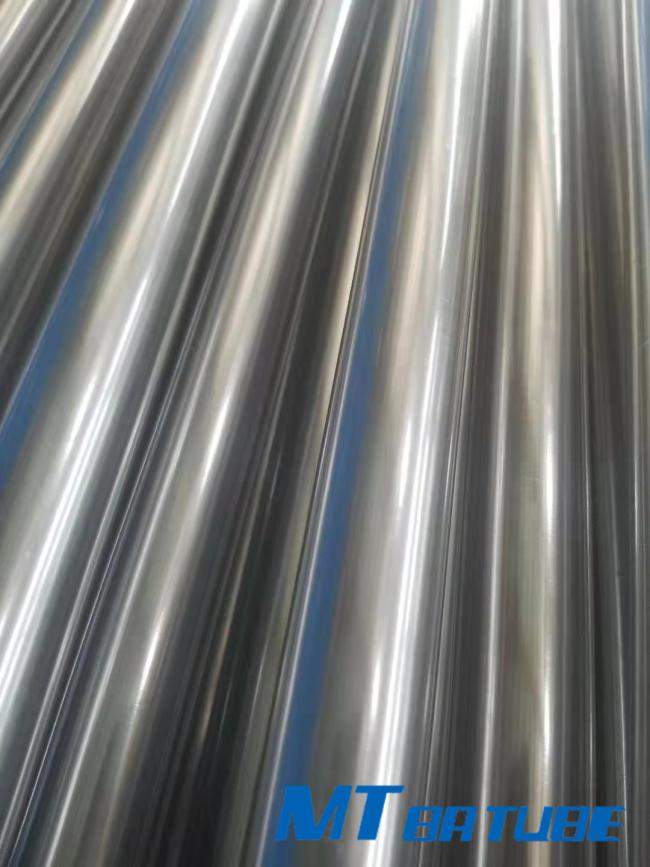

ASTM A269 19.05mm*2.11mm Stainless Steel BA Tube For Precision Instrument
ASTM A269 19.05mm x 2.11mm Stainless Steel BA Tube For Precision Instrument
Material Grade :
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
| Corrosion Test | If clients need will be conducted |
| Chemical Analysis | Will be tested as per required quality standards |
| Destructive / Mechanical Testing | Tensile / Hardness / Flattening |
| Eddy Current Testing | Using digital flaw-mark testing System to do test and mark in surface homogeneities |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection |
After passivation, every single length of tubes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Price Item: FOB , CFR , CIF or as negotiation
Payment: TT, LC or as negotiation
Delivery Time:30 working days after received your deposit ( Normally according to the order quantity )
Package: Iron case ; woven bag or as per customer’s requirement
Quality Requirement: Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Test NTD ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
Main Market: Europe , Middle East , Southeast Asia , South America etc
| Elements | 304L(wt%) S30403 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A |
