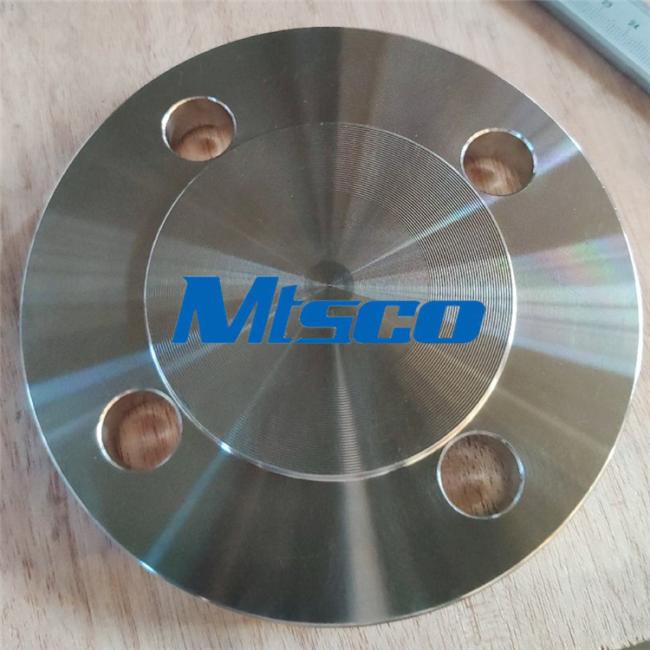

Forged F304 304L 150LB Stainless Steel Blind Flange For Pipe
Forged F304 / 304L 150LB Stainless Steel Blind Flange For Pipe
Blind Flange:
A blind flange is a solid flange. The purpose of these is to block off a section of pipe or a nozzle on a vessel that is not used.
Flanges can be raised face (RF) or flat faced (FF).
ASTM A182 / A182M Standard Chemical Composition :
| Elements | 304L(wt%) / F304L / S30403 | 304(wt%) / F340 / S30400 | 316L (wt%) / F316L /S31603 | 316 (wt%) / F316 / S31600 | 310 (wt%) / F310 / S31000 |
| (C) Carbon, max | 0.03 | 0.08 | 0.03 | 0.08 | 0.25 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 13.0 | 8.0 - 11.0 | 10.0 - 15.0 | 10.0 - 14.0 | 19.0 - 22.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 | 24.0 - 26.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 | N/A |
| (Fe) Iron | N/A | N/A | N/A | N/A | N/A |
| (Cu) Copper | N/A | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A | N/A |
Blind Flange Material Grade:
|
Material Grade |
WP304 , WP304L , WP304H , WP316 , WP316L , WP316Ti , WP309S , WP310S , WP321 , WP321H , WP347 , WP347H , F304 , F304L , F304H , F316 , F316L , F310S , F321 etc |
|
Size |
1/2" to 48" Sch 5S to XXS |
|
Standard |
ASTM A403, ASTM A182 etc . |
|
Process Method |
Forged / Casting |
Who MTSCO IS?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
For more information, you are welcome to contact us by email. Thank you for your interest.
