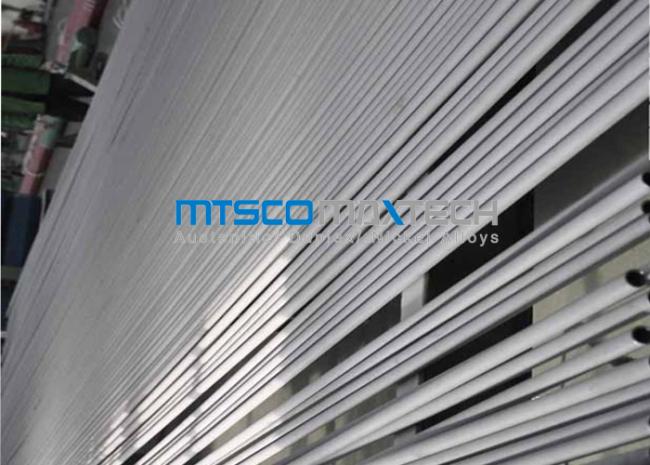

S32750 2mm Stainless Steel Tube Annealing / Polished Surface
Stainless Steel Pipe 2mm Stainless Steel Pipe Design S32750 Stainless Steel Tube
Stainless steel pipe is a kind of hollow long round steel, which is widely used in industrial transmission pipelines and mechanical structural components such as petroleum, chemical industry, medical treatment, food, light industry, machinery and instruments, etc. In addition, when the bending and torsional strength are the same, the weight is light, so it is "also widely used in the manufacture of mechanical parts and engineering structures. It is also commonly used as furniture, kitchenware, etc. In the standard of stainless steel pipe, Brinell hardness is the most widely used. The hardness of the material is often expressed by indentation diameter, which is intuitive and convenient. However, it is not applicable to steel pipes with hard or thin steel.
|
Name
|
2507 UNS S32750 Super Duplex Stainless Steel Seamless Pipe Tube
|
||
|
Standard
|
AISI, ASTM, DIN, EN, GB, JIS
|
||
|
Material
|
stainless steel
|
||
|
Application
|
construction field,etc
|
||
|
Package
|
Standard export packing or as requirement
|
||
|
Payment Term
|
T/T,Western union,L/C
|
||
|
Grade
|
2507
|
||
|
Delivery Time
|
15-20 Days
|
||
|
Price Term
|
EXW/FOB/CFR/CIF/FCA
|
||
Application:
a) Petroleum
b) Chemical industry
c) Instrument
d) Industrial transportation
e) Mechanical structure industry
f) Need high corrision ability pipe's industry, such as offshore industry etc
Advantages:
a) Superior surface finish,
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Price Item: FOB, CFR, CIF or as negotiation
Payment: T/T, LC or as negotiation
Delivery Time: 30 working days after received your deposit (Normally according to the order quantity)
Package: Iron case; woven bag or as per customer’s requirement
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.7 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | - | - |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| max | max | max | max | max | ||||||
| S31803 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
| S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
| S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
| S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
Welcome enquiries from all of you! MTSCO is a company who can supply high quality products to you. And we have ISO, PED & AD2000. In the near future, our DNV certificate will coming soon.
