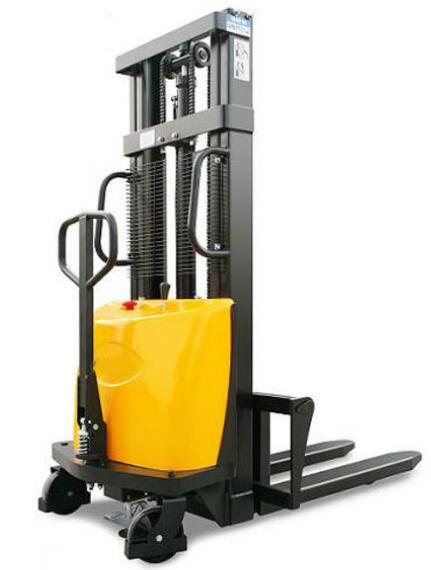

2000kg Warehouse Material Handling Equipment Battery Operated Manual Hand Lift Stacker
2000kg Battery Operated Manual Hand Lift Stacker with CE Certificate , Easy Controlled
Semi electric stacker:
1) Strong mast
2) with explosion proof valve
3) over discharge protection
4) Low battery protection
About us
1) more than 23 years experience team in manufacturing, service.
2) with ISO certificates
3) service and quality is before profit
4) sample order is acceptable
5) the payment terms: T/T
6) delivery term: FOB Ningbo, CIF, Ex-w factory etc.
Product details:
1) Low center of gravity, making the stacker more stable during use and reliable.
2) Over-discharge protection device greatly extended battery life.
3) The use of imported mast materials, ensures high strength, good stability.

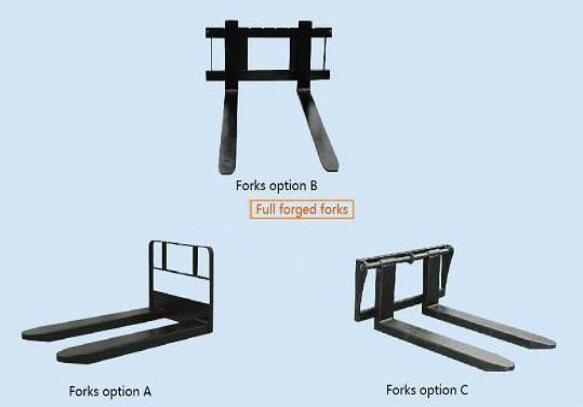

4) Adjustable forged forks can be lowered to the same height of legs.
5) Foot brake is simple and easy to maintain. Strong wheel frame ensures good operation.
6) Setting a explosion-proof valve in the pump,to avoid rapid decline when oil pipe damaged in the accident to ensure the operator’s safety.
Product Data:
| MODEL | LSA | |
| LOAD CAPACITY | Q(kg) | 1000/1500/2000 |
| LOAD CENTER | c(mm) | 500 |
| WHEEL BASE | Y(mm) | 1145 |
| WEIGHT (WITH BATTERY) | kg | 265-350 |
| WHEEL SIZE, FRONT | (mm) | φ80x70 |
| WHEEL SIZE, REAR | (mm) | φ180x50 |
| HEIGHT, MAST LOWERED | h1(mm) | 2088 |
| LIFTING HEIGHT | h3(mm) | 1600/2500/3000/3300/3500 |
| MAST HEIGHT AT MAX. LIFTING HEIGHT | h4(mm) | 2088 |
| LOWERED FORK HEIGHT | h13(mm) | 90 |
| OVERALL LENGTH | l1(mm) | 1505 |
| OVERALL WIDTH | b1(mm) | 800(980) |
| FORK LENGTH | l(mm) | 900/1070/1150 |
| FORK WIDTH | b5(mm) | 550/660 |
| MAST GROUND CLEARANCE | m1(mm) | 28 |
|
AISLE WIDTH FOR PALLET1000x1200 (1200 CROSSWAYS) |
Ast(mm) | 1705 |
|
AISLE WIDTH FOR PALLET 800x1200 (1200 LENGTHWAYS) |
Ast(mm) | 1755 |
| TURNING RADIUS | Wa(mm) | 1210 |
| LIFTING SPEED,LADEN/UNLADEN | m/s | 135/150 |
| LOWER SPEED,LADEN/UNLADEN | m/s | MANUAL |
| LIFTING MOTOR POWER | kW | 1.6 |
| BATTERY VOLTAGE/NOMINAL CAPACITY | V/Ah | 12/(100/120/135) |
