Multifunctional Hardness Iron Warehouse Material Handling Equipment Electric Pallet Forklift

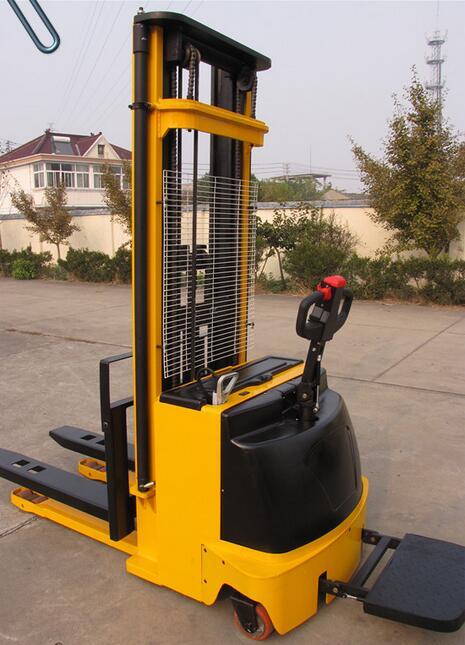

Multifunctional Hardness Iron 2 ton Small Electric Pallet Forklift with CE Certificate
Product Description
This electric pallet forklift is designed to operate in narrow passage and limited space, and are ideal facilities to load/unload and stack goods in stacking warehouses, supermarket and workshop etc. These trucks have following features and benefits, human system engineering design, Continuously Variable Transmission, wide view mast assembly made of Germany steel, maximum lifting height 6meters, with optional standing plat.
Advantages
1.Large power series motors
2.Howell type stepless adjusting speed
3.Emergency reverse function
4.Neutral braking function
5.Regenerative braking function
6.Optional speed &working modes
7.Pressure compensation function
8.Low pressure alarming function
Technical Data:
| General | Model | Unit | LS10 | LS12 | LS15 | |
| Rated load capacity | kg | 1000 | 1200 | 1500 | ||
| Power | Tractive-type battery | |||||
| Operator type | Pedestrian / rider (pedal) | |||||
| Characteristics | Maximum lifting height | mm | 1600 | 1600 | 1600 | |
| Lowered height of fork | mm | ≤90 | ≤90 | ≤90 | ||
| Minimum turning radius | mm | 1425 | 1425 | 1650 | ||
| Minimum aisle width | mm | 2300 | 2300 | 2500 | ||
| Minimum ground clearance | mm | 30 | 30 | 30 | ||
| Standard fork length | mm | 1150 | 1150 | 1150 | ||
| Standard fork width | mm | 160 | 175 | 175 | ||
| Fork overall width | mm | 560 | 570 | 570 | ||
| Fork individual width | mm | 240 | 220 | 220 | ||
| Chassis | Overall length | mm | 1800 | 1800 | 1988 | |
| Overall width | mm | 850 | 850 | 1000 | ||
| Mast extended height | mm | 1975 | 1975 | 1975 | ||
| Mast lowered height | mm | 1975 | 1975 | 1975 | ||
| Performance | Maximum traveling speed | Laden | km/h | 4 | 4 | 4 |
| Unladen | km/h | 6 | 6 | 6 | ||
| Maximum lifting speed | Laden | mm/h | 80 | 80 | 80 | |
| Unladen | mm/h | 130 | 130 | 130 | ||
| Maximum lowering speed | Laden | mm/h | 110 | 110 | 110 | |
| Unladen | mm/h | 90 | 90 | 90 | ||
| Gradeability | Laden | % | 5 | 5 | 5 | |
| Unladen | % | 8 | 8 | 8 | ||
| Brake | Braking type | Electromagnetic | ||||
| Wheel | Wheel type front/rear | Poly/Poly | ||||
| Wheels | 1×Driven wheel,2×Balance wheel,4×Front wheel | |||||
| Balance wheel dimension | mm | Φ156×50 | Φ156×50 | Φ156×75 | ||
| Axis space | mm | 1228 | 1228 | 1450 | ||
| Motor | Driving motor | kw | 1.2 | |||
| Lifting motor | kw | 2.2 | ||||
| Battery | Battery(Voltage/Capacity) | V/Ah | 12/120×2 | 12/165 | 24/210 | |
| Control | Control system | Curtis I207a | ||||
| Weight | Weight | kg | 650 | 690 | 690 | |
Electric Pallet Forklift Information:
Our Electric Pallet Forklift is highly reliable, and economical. This electric stacker truck (electric pedestrian stacker, or electric walkie stacker) is wherever noise reduction and freedom from exhaust gas pollution are priorities. Equipped with Powerful traction batteries with a high storage capacity and long service life, the electric lift stackers provide ample energy for an 8 hour shift. In addition, the electric pallet stacker offers a high level of working safety, comfort and functionality.
