150KGS Double Scissor Lift Table CE 1.5 Ton Hydraulic Type Mobile With Rollers
150KGS Double Scissor Lift Table CE TUV GS ISO , 1.5 Ton Hydraulic Type Mobile with Rollers
Application :
The scissor elevator lift is widely used on aerial installation & maintenance of the working sites without power supply and with smooth working grounds, such as hotels,
bus/railway stations, airports, gas station,sport stadium, large factory, grand hall, workshops,warehouse, granary, and aerial pipeline.
Advantages
Welded all-steel frame with powder-coat finish for maximum durability and protection.
Dual-Cylinder design provide safety lifting.
Chromed handle frame is both attractive and durable.
Convenient foot pump for easy lifting and lowering.
Moves easily on 4-polyurethane casters, 2 swivel with brakes and 2 rigid.
Safety Instruction.
Double scissor lift provides additional lifting height .
AC or DC Models are available.
Main Features
1) Valuable material handing equipment for use as a feeding table on assembly line.
2) Structural heavy duty steel construction.
3) Easy action foot operated hydraulic lift for raising table top to desired level.
4)Hand operated table descent control.
5)Over load by-pass value protects operator and pump.

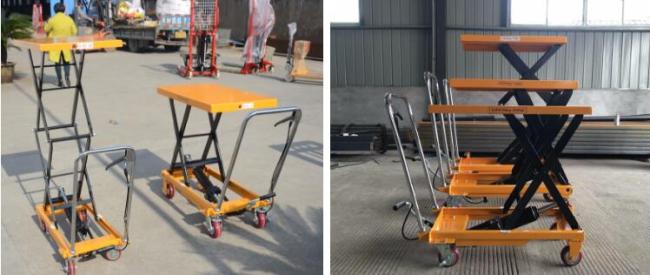

Descriptions of double scissor lift table:
1) Welded all-steel frame with Powder-coat finish for maximum durability and protection.
2) Convenient foot pump for easy lifting and lowering.
3) Overload protection ball valve prevents lifting loads past maximum capacity.
4) Steering casters with brakes.
5) Compact design flexibility and effort moving.
Product Data:
| Model (double sissor) | LSS150 | LSS350 | LSS800 | |
| Load capacity/rated load | kg | 150 | 350 | 800 |
| Max.lift height | h12 (mm) | 1100 | 1300 | 1500 |
| Min.height of table | h13 (mm) | 302 | 350 | 475 |
| Lifting height | h3 (mm) | 798 | 950 | 1025 |
| Table size | lxb5xs(mm) | 700*450*35 | 910*500*52 | 1220*610*60 |
| Foot pedal cycles to max height | ≤30 | ≤60 | ≤70 | |
| Service weight | kg | 64 | 105 | 172 |
| Carton size | mm | 860*485*300 | 985*510*350 | 1370*645*470 |
Product description
1. Color : red/yellow/orange /blue/green/black etc, as per customer request
2. Capacity: 150kg
3. Power coating finish, reliable quality.
About us
1) more than 23 years experience team in manufacturing, service.
2) with ISO certificates service and quality is before profit
3) sample order is acceptable
4) the payment terms: T/T
5) delivery term: FOB Ningbo, CIF, Ex-w factory etc.
Product details
1) with safety valve
2) with safety wheel frame
3) with safety supporting bar
4) with safety distance between scissor
5) safety board to EU orders
High quality hydraulic ensure reliable long life
Designed as per CE standard
With overload protection
