Polyurethane Wheel Warehouse Material Handling Equipment 1.5T Pallet Forklift Truck Stacker
Electric 1.5T Power Reach Pallet Forklift Truck Stacker with Polyurethane Wheel
Product Descriptions:
Electric Stacker are designed to operate in narrow passage and limited space, and are ideal facilities to load/unload and stack goods in stacking warehouses, supermarket and workshop etc. These trucks have following features and benefits, human system engineering design, Continuously Variable Transmission, wide view mast assembly made of Germany steel, maximum lifting height 6meters, with optional standing plat.
Large power series motors
Howell type stepless adjusting speed
Emergency reverse function
Neutral braking function
Regenerative braking function
Optional speed &working modes
Pressure compensation function
Low pressure alarming function
Product specification:
| specification | Model | LSA12 | LSA16 |
| Driving Model: Electric(battery), diesel, gasoline, fuel gas | Electric(battery) | Electric(battery) | |
| Operating(Manual, Walking, Stand driving, seat driving ,Order picking | Stand driving | Stand driving | |
| Rated Capacity | 1200/1500 | 1200/1500 | |
| Load Center Distance | 500 | 500 | |
| Load Distance, centre of drive axle to fork | 445 | 445 | |
| Wheelbase | 1280 | 1380 | |
| Weight | Service weight(with battery) | 1620/1750 | 1750/1880 |
| wheels | Wheels (rubber, high elasticity, pneumatic tyre, polyurethane wheel) | polyurethane wheel | polyurethane wheel |
| Wheel dimension, front | Φ250×80 | Φ250×80 | |
| Wheel dimension, rear | Φ210X85 | Φ210X85 | |
| Wheel number, front/rear (x = driving wheel) | 1x/2 | 1x/2 | |
| Thread, rear | 895 | 895 | |
| Dimension | Max. Lift Height | 2500/3000//3500 | 4500/5000/5500 |
| Height, Fork Lowered | 35 | 35 | |
| Overall Length | 2260 | 2360 | |
| Overall Width | 980 | 980 | |
| Fork Dimension | 100/35/1070 | 100/35/1070 | |
| Fork Width | 200-680 | 200-680 | |
| Ground Clearance | 50 | 50 | |
| Aisle Width, with pallet 1000x1200 crosswise | 2460 | 2560 | |
| Aisle Width, with pallet 800x1200 lengthwise | 2560 | 2660 | |
| Turning Radius | 1500 | 1550 | |
| Performance Data | Traveling Speed, full load/unload | 4.5/5.2 | 4.5/5.2 |
| Lifting Speed, full load/unload | 0-0.12/0-0.2 | 0-0.12/0-0.2 | |
| Descending speed, full load/unload | 0-0.2/0-0.18(Adjustable) | 0-0.2/0-0.18(Adjustable) | |
| Max. Gradient, load/unload | 5/8 | 5/8 | |
| Traveling Brake | Electromagnetic brake | Electromagnetic brake | |
| Motor | Driving Motor Power | 1.2/1.5(AC) | 1.2/1.5(AC) |
| Lifting Motor Power | 3.3 | 3.3 | |
| Battery Voltage/Rated Capacity | 24/210 | 24/210 | |
| Battery Weight | 200 | 200 | |
| Turing Mode | Electric Power System | Electric Power System | |
| Noise Level at Operator’s Ear, according to DIN12053 | <70 | <70 |
Prodcut Features:
1. Color: yellow, or can be customized also.
2. Capacity:1200kg/1600kg/2000kg
3. Electric power steering
4 AC vertical drive motor

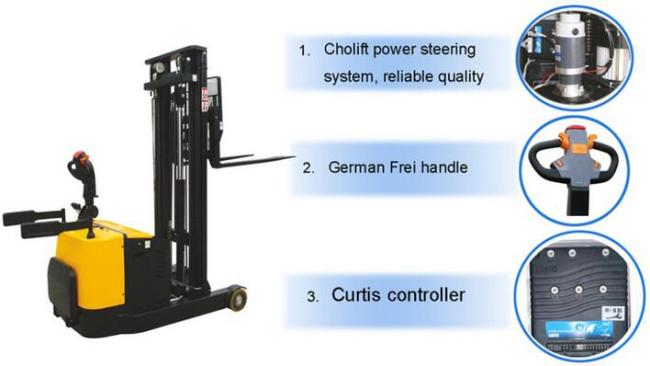

5. Curtis controller, Frei handle
6. With CE ISO certifications, waiting for your order!
7. Double masts, Electric Stacker
8. Imported handle Side battery
9. Power steering system
10. High-strengh materials, sturdy structure.
