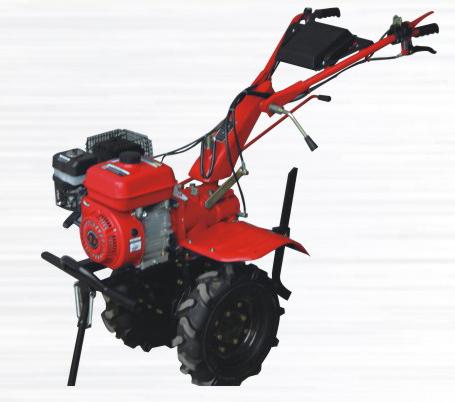

170F Gasoline Engine Agricultural Mini Tractor Tillers and Cultivators , Low Fuel Consumption
Mini-tilling Agricultural Machines with 170F Gasoline Engine Low Fuel Consumption
Specifications:
|
Place of Original |
Guangdong China |
|
Brand Name |
Laurel |
|
Model Number |
LFM1WG-4.1-90FQ-ZC |
|
Package dimensions |
1500mm*900mm*800mm |
|
Overall Weight |
≤74kg |
|
Auxiliary power |
170F Gasoline engine 4.1KW/3600r/min |
|
Depth of Plowing |
≥100mm |
|
Width of Plowing |
≥900mm |
|
Productivity |
≥0.04 hm2/(h.m) |
|
Fuel consumption |
≤30kg/hm2 |
|
Gear shifting |
1,2, Reverse, Neutral |
|
Transmission way |
Rotation of the gear shift |
Assembly Line:
Firstly, assemble the shift gearbox;
Secondly, assemble the walking box;
Thirdly, assemble the chasis;
Fourthly, assemble gasoline engine and handle bar to the farm machinery;
Fifthly, assemble the wheel of tiller machinery.
Advantages:
1. Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the Agricultural machine business, big advantage for re-sell also.
2. Quick coupling system and compatible attachments enable the machines can do many different kind of work. you can find all what you need here in our factory.
3. Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.
