Industrial Warehouse Material Handling Equipment Straddle Leg Semi Electric Stacker 1.5T
Straddle Leg Type Semi Electric Stacker with CE Certificates , 1.5 Ton 3M for Industrial
About Samples:
Samples are available.
Sample charges will be refund against your first order on the basis of MOQ.
Sample time will be negotiable.
We welcome requests from you:
OEM&ODM requirements are welcome and will be accomplished professionally.
Custom's logo could be printed.
Different sizes, materials, colors, surface treatments could be made as per customers'options.
If our existing products are not what you’re looking for, please feel free to contact us, we are pleased to make customized samples for you.

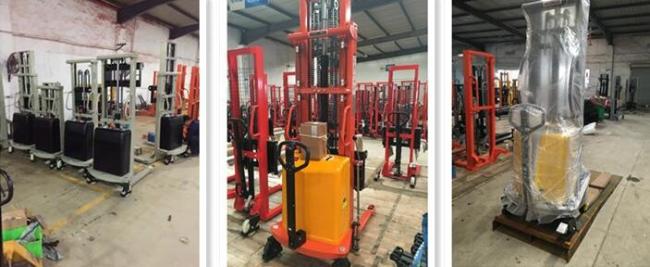

Features of Semi Electric Stacker
This Stacker is mobile, with easy pushing or pulling by hand. All wheels are provided with double ball bearings with dust covers.
Lifting & Lowering of forks is done by the hand lever placed on the front cover. The lifting Forks are easily adjustable to decrease or increase the width as above, required for Pallets as available with user.

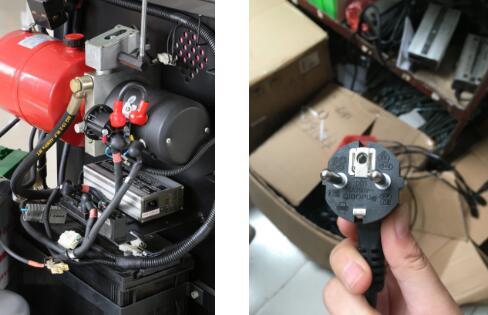

High quality Power pack with minimum & easy maintenance is designed for these type of stackers. Battery meets international standards and to charge the battery, 220 V AC Power supply is required to battery charger. A digital display of Battery Charging is provided on the front cover which shows sharging position of Battery while using or charging the Battery.
Excellent after sale service and parts are available over the shelf.
Specification Date of Semi Electric Stacker:
| Model No. | LS1000-16 | LS1500-16 | LS2000-16 | LS1000-20 | LS1000-25 | LS1000-30 | |
| Rated Capacity(Q) | Kg | 1000 | 1500 | 2000 | 1000 | 1000 | 1000 |
| Mast | Single Mast | 2-stage Mast | |||||
| Lifting Height(H) | Mm | 1600 | 1600 | 1600 | 2000 | 2500 | 3000 |
| Fork Length(L) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Fork Width(E) | 300~680 | 300~680 | 300~680 | 310-820 | 310-820 | 310-820 | |
| Load Center(C) | 400 | 400 | 400 | 400 | 400 | 400 | |
| Minimum Turning Radius(R) | 1350 | 1350 | 1350 | 1350 | 1350 | 1450 | |
| Lifting Motor | V/Kw | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 |
| Battery | V/Kh | 12/120 | 12/120 | 12/120 | 12/120 | 12/120 | 12/120 |
| Charger | V/Kh | 12/15 | 12/15 | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall Length(A) | Mm | 1670 | 1670 | 1670 | 1670 | 1670 | 1700 |
| Overall Width(B) | 865 | 865 | 865 | 810 | 810 | 930 | |
| Overall Height(H1) | 2060 | 2060 | 2060 | 1580 | 1830 | 2080 | |
| Net Weight | Kg | 340 | 362 | 388 | 424 | 446 | 468 |
| Model No. | LE1000-35 | LE1500-20 | LE1500-25 | LE1500-30 | LE1500-35 | LE2000-20 | |
| Rated Capacity(Q) | Kg | 1000 | 1500 | 1500 | 1500 | 1500 | 2000 |
| Mast | 2-stage Mast | ||||||
| Lifting Height(H) | Mm | 3500 | 2000 | 2500 | 3000 | 3500 | 2000 |
| Fork Length(L) | 1000 | 1000 | 1000 | 1000 | 1000 | 1100 | |
| Fork Width(E) | 310-820 | 310-820 | 310-820 | 310-820 | 310-820 | 330-640 | |
| Load Center(C) | 400 | 400 | 400 | 400 | 400 | 400 | |
| Minimum Turning Radius(R) | 1450 | 1350 | 1350 | 1450 | 1450 | 1280 | |
| Lifting Motor | V/Kw | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 |
| Battery | V/Kh | 12/120 | 12/150 | 12/150 | 12/150 | 12/150 | 12/150 |
| Charger | V/Kh | 12/15 | 12/15 | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall Length(A) | Mm | 1700 | 1670 | 1670 | 1700 | 1700 | 1600 |
| Overall Width(B) | 930 | 810 | 810 | 930 | 930 | 710 | |
| Overall Height(H1) | 2330 | 1580 | 1830 | 2080 | 2330 | 1580 | |
| Net Weight | Kg | 490 | 448 | 470 | 492 | 515 | 380 |
Product Advantage
1.The products have passed the TUV GS and CE certification.
2.The frame adopts U strctural steel, lifting more stable security.
3.The whole products equipped with extended PMMA and wheel frame protection device.
4.The forks can be choose the fixed or adjustable one.
5.The lift is used electric, can be more convenience.
