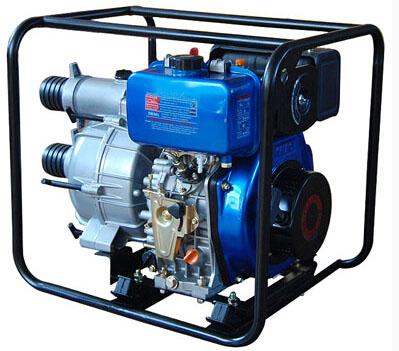

Well / Farm / Garden use Single cylinder Diesel Engine Water Pump For Irrigation
Diesel Engine Agricultural Water Pump Easy Maintenance for Well / Farm / Garden use
Specifications:
Diesel Engine Water Pump | |
Model | LHM30S |
Diameter(mm) (inch) | 80(3" ) |
Max. flow(m3/h) | 60 |
Max. lift(m) | 30 |
Max. suction lift(m) | 8 |
Rotational speed(rpm) | 3600 |
Self-priming time(s/4m) | 120 |
Engine model | HR186F |
Engine type | Single-cylinder, vertical, four-stroke,air cooled |
Bore*stroke(mm) | 86*70 |
Displacement (L) | 0.406 |
Power (KW) | 6.3/3600 |
Power (HP) | 8.4HP/3600 |
Fuel consumption rate(g/kw.h) | 285 |
Compression ratio | 20 |
Lubrication system | Pressure splash Type |
Engine starting system | Recoil starter |
Fuel oil model | Summer:0#,Winter:-10# |
Lube oil model | SAE10W-30 (above CD grade) |
Lube oil capacity (L) | 1.1 |
Fuel tank capacity (L) | 3.5 |
Dimension (L*W*H)(mm) | 590*475*585 |
Net weight(kg) | 54 |
Gross weight(kg) | 58 |
Advantages:
1. Reliable Performance:
Reliable Performance is the major advantage of products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers' requirements .Our engineer develop and
design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4. Low fuel consumption, easy maintenance
5. Certification: CE,ISO,GS,SONCAP etc.
6.Our logo or OEM
