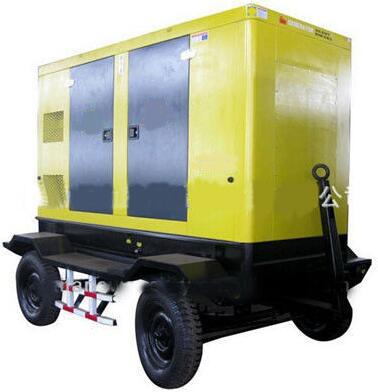

Automatic Trailer Type Mobile Power Generator Station Electric Governer 30kw Diesel IP23
Automatic Trailer Type Mobile Power Generator Station Electric Governer 30kw Diesel IP23
Specifications :
1 . OEM OF CUMMINS
2 . Good quality
3 . Low fuel consumption
4 . Cummins engine is international warranty service
|
Engine brand |
Cummins-4BT3.9G2 (Genuine & new) |
|
Alternator brand |
Stamford- UCI224C(Genuine & new) |
|
Prime power |
34kw |
|
Standby power |
36kw |
|
Fuel consumption |
196G/KW. H |
|
Package |
Plywood |
|
Packing size |
5.4CBM |
|
Gross weight |
800KG |
|
Factory place |
Taizhou City, Jiangsu Province |
|
Deliver lead time |
7 work days upon receipt of advance payment |
|
Payment |
30% T/T advance, the balance 70% T/T before shipping |
|
Warranty |
1 year or 1000 hours |
Engine technical parameters :
Engine Model:CUMMINS 4BTA3.9G2
Prime Power:36KW
Standby Power: 40KW
Cylinder No.: L4
Bore × stroke:102x120mm
Fuel oil consumption(L/h):11
Displacement(L):9
Stroke:4
Governing method:Electric governer
Starting method:Electrical
Alternator technical parameters :
Alternator Brand: Kaijieli, Siemens,Standford,Marathon,Lanzhou ElectricRated Voltage:230/400V
Frequency:50Hz
Speed:1500RPM
Excitation mode:Self-excitation, brushless
Power factor:0.8lag
Phase number and connection method:Three-phase, four-wire
Insulation class:H
Protection class:IP23
