Small Paddy Rice Harvesting Agriculture Harvester For Muddy Land , ISO TUV
Small Agricultural Machines Rice Harvester ISO TUV Certificates
Introduction

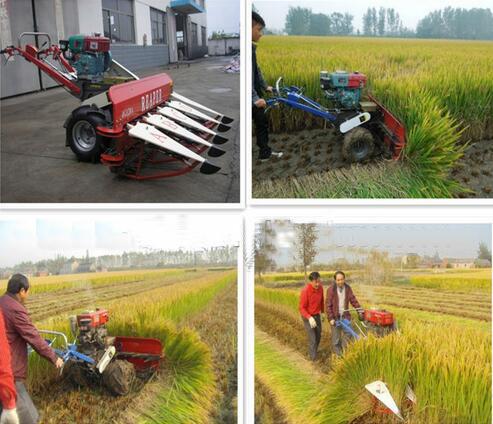

4G series paddy rice and wheat harvester/reaper is a kind of man-holding & self-walking harvesting machine. It's the new product with the advanced technology in China, with the renovated surface, strengthened applicability, improved performance, better reliability and optimized technical structure.
The Machine is mainly used to harvest the paddy and wheat. It could also be used to harvest the soybeans and reeds. It's applicable in the plain, hills, slopes, small fields, etc. In addition, it's with the advantages of small volume, light weight, flexible performance, simple operation, low batch-cutting, no limit on distance. The Machine could be not only suitable for the harvesting on the big, middle and small fields, but also suitable on the area with inconvenient traffic.
Description
Matched with the walking tractor, with a rugged, light weight, mobility flexible, simple and convenient operation of labor-saving, low-cut stubble, not pressure are summarized, and from the ridge away from the crop row spacing and the advantages and restrictions. Widely applicable to the size of the harvested crop land, especially for the harvest of muddy land.
Specification:
| Model | 4G80 | 4G100 | 4G120 | 4G150 | ||||
| Cutting width | 80cm | 100cm | 120cm | 150cm | ||||
| Item | Rice, wheat, sorghum, grass reaper/harvester | |||||||
| Power | JF168 air cooling gasoline engine |
170F air cooling diesel engine |
170F air cooling diesel engine |
175B air cooling diesel engine |
||||
| Efficiency | 0.13-0.2ha./h | 0.17-0.27ha./h | 0.2-0.3ha./h | 0.3-0.4ha./h | ||||
| Oil consumption | 1.2-1.5liter/h | 1.2liter/h | 1liter/h | 0.8-1liter/h | ||||
| Dimension | 2100*1100*1000mm | 2100*1250*1000mm | 2150*1500*1100mm | 2250*1850*1100mm | ||||
| Weight | 152kg | 160kg | 246kg | 270kg | ||||
| Form of laying | Sideward in rows | |||||||
| Loss rate | Less than 1% | |||||||
| Placing angle | 90°±20° | |||||||
Manufacture's Advantages:
1. Our factory was founded in 1981.
2. Main Products: diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel harvest machines.
3. warranty period of 12 months or 1000 operating hours for gasoline harvest machines.
