Portable Gasoline Water Pump 4 Inch for Farming with Forced Air Cooling 4 Stroke
Portable Gasoline Water Pump 4 Inch for Farming
Advantages:
1. Reliable Performance:
Reliable Performance is the major advantage of products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers' requirements .Our engineer develop and
design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4. Low fuel consumption, easy maintenance
5.Our logo or OEM
Water Pump Technical Data:
| Model No | LP50-100 | LP50-32 | LP80-30 | LP100-40 |
| Outlet size(mm) | 50 | 50 | 80 | 100 |
| Inlet size(mm) | 50/25/25 | 50 | 80 | 100 |
| Rated rotation speed(rpm) |
3600 | 3600 | 3600 | 3600 |
| Max. flux(m3/h) | 35 | 35 | 60 | 78 |
| Max lift(m) | 100 | 30 | 28 | 30 |
| Max. suction(m) | 7 | 7 | 7 | 8 |
| Continous time(h) | 2.5 | 2.5 | 2.5 | 2.5 |
| Engine model | 170F | 170F | 170F | 173F |
| Displacement (cc) | 208 | 208 | 208 | 242 |
| Max. power ourput HP(kw)/rpm |
7hp/3600 | 7hp/3600 | 7hp/3600 | 8hp/3600 |
| Fuel tank capacity(L) | 3.6 | 3.6 | 3.6 | 6.5 |
| Bore×stroke | 70x54 | 70x54 | 70×54 | 73×58 |
| Compression ratio | 8.5:1 | 8.5:1 | 8.5:1 | 8.2:1 |
| Engine oil capacity(L) | 0.6 | 0.6 | 0.6 | 1.1 |
| Fuel consumption (g/kw.h) |
≤395 | ≤395 | ≤395 | ≤395 |
| Engine type | OHV25°, single cylinder, 4 stroke, forced air cooling |
OHV25°, single cylinder, 4 stroke, forced air cooling |
OHV25°, single cylinder, 4 stroke, forced air cooling |
OHV25°, single cylinder, 4 stroke, forced air cooling |
| Air cleaner type | foam filter element | foam filter element | foam filter element | foam filter element |
| Ignition system | transistor magneto | transistor magneto | transistor magneto | transistor magneto |
| Startiong system | Recoil start | Recoil start | Recoil start | recoil start |
| Net/Gross Weight(kg) | 28/29 | 26/28 | 28/30 | 45/47 |
| length×width×height | 510×385×440 | 510×385×440 | 550×440×460 | 620X530X570 |
| 20' container fill(CARTONS): |
330 | 330 | 250 |

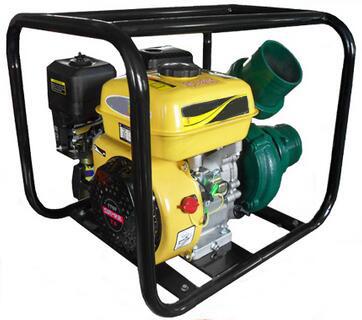

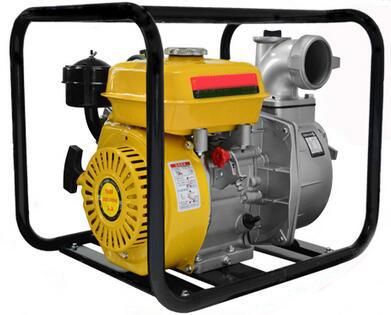

Water Pumps Pictures:
