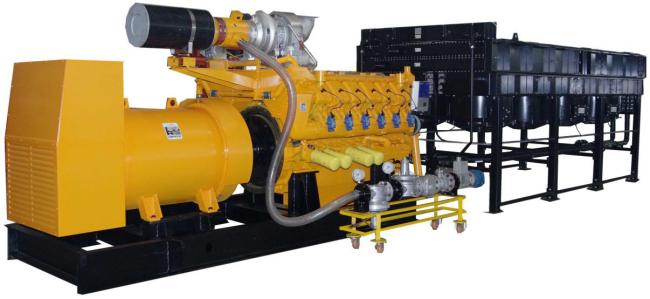

US Googol 1000kva 800kw Natural Gas Generators 1200rpm Remote Radiator Electrical Motor
US Googol 1000kva 800kw Natural Gas Generators 1200rpm Remote Radiator with Electrical Motor
Gas Generator, 60HZ, 1200rpm, 600V Features:
|
Genset Model |
LF 1000/6 |
|
Continuous Output (COP) |
800KW/1000KVA |
|
Engine Model (Googol) |
LE3240SG2 |
|
Alternator Model (Marathon) |
MX-750-6 |
|
Cooling Type |
Remote radiator with electrical motor |
|
Generator Control System |
AIO Motortech |
|
Gas Type |
Natural Gas |
|
Rating Voltage |
600V/347V |
|
Phase |
3 |
|
Rating frequency |
60HZ |
|
Speed |
1200rpm |
|
Electrical Efficiency |
39.5% |
|
Thermal Efficiency |
44.4% |
|
ACB Output Panel |
2000A/ABB Breaker |
|
40HQ Container Type for Silent Canopy |
1 set |
Notes:
The Gas genset will be matched with Joint-Venture Googol gas engine and Marathon alternator, 60Hz, 1200rpm, 220V.
Gas source: Low Heat Value≥36MJ.
The heat recovery system is optional.
The gas cut-off valve, filter, regulator valve are included in quotation.
Site installation and commission charge is not included in quotation.
All power cables are not included in above quotation.
The warranty period is 2 years or running 12000 hours(the earlier one shall prevail)from the date when the generator set has been delivered from the factory.
Gas Control System:
|
Gas Train Inlet Valve System |
Ball valve |
Googol Order |
|
|
Pressure Regulator Valve |
Googol Order |
|
|
Gas Filter |
Germany Dungs |
|
|
Control Solenoid Valve |
Germany Dungs |
|
|
Zero Regulator Valve |
Germany Dungs |
|
Ignition System |
Ignition Controller |
Germany Motortech |
|
|
Coil |
Germany Motortech |
|
|
Harness |
Germany Motortech |
|
|
Sensor |
Germany Motortech |
|
|
Spark Plug |
Japan Denso |
|
Governor System |
Controller |
Germany Heinzmann |
|
|
Actuator |
Germany Heinzmann |
|
|
Throttle Valve |
Germany Heinzmann |
|
|
Pickup Sensor |
Germany Heinzmann |
|
Knock Control System |
DetCon20 control unit |
Germany Motortech |
|
|
Knock sensor |
Germany Motortech |
|
Air-Gas Control System |
Air-Gas Mixer |
Germany Motortech |
|
|
Controller |
Germany Motortech |
|
|
Pressure Sensor |
Germany Motortech |
|
|
NOx Sensor |
Germany Motortech |
