350kg Mini Hydraulic Hand Table Truck Mobile Industrial Material Handling Equipment
350kg Mini Lift Platform Manual Hydraulic Hand Table Truck , Mobile Industrial Handing Tools
Product Detail:

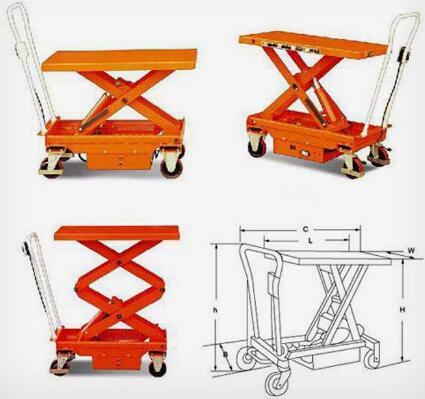

Manual Hydraulic Hand Table Truck lifts and lowers heavy cargo for easy loading and unloading.
Welded all-steel frame with powder-coat finish for maximum durability and protection.
Dual-Cylinder design provide safety lifting.
Chromed handle frame is both attractive and durable.
Convenient foot pump for easy lifting and lowering.
Moves easily on 4-polyurethane casters, 2 swivel with brakes and 2 rigid.
Safety Instruction.
Double scissor lift provides additional lifting height .
AC or DC Models are available.
Application fields
Ergonomic working station
Feeding of processing machinery(in wood ,plastic,glass,steel)
Conveyor system,packaging system.
Loading bay.
Loading and unloading pallets for aircraft.
Connection between different stages.
Product Advantages:
Ergonomically designed lifter/transporter features handy hydraulic foot pump to elevate formed-edge platform, reducing strain and fatigue, used for lifting, transporting, positioning, assembling, stacking and unstacking. Easy-to-operate brake keeps unit stationary while loading and unloading, while the lowering valve provides precise lowering.
Technical Data:
| MODEL | LSS350 | |
| Capacity | 350kg | |
| Lowered Height | 345/395mm | |
| Lifting Height | 1300mm | |
| Table Size | 905*512*55mm | |
| Total Length | 1170mm | |
| Length of Handle | 970mm | |
| Pacing Size | 1000*520*350/420 | |
| Weight | 97kg | |
How to maintain
Equipment used for two months, according to the practical use frequency need to inject a grease for rotational parts.
check the pin condition, if found pin or screw loose, be sure to tighten, prevent pin and screw off cause an accident.
The hydraulic oil should be kept clean, once every six months to replace.
When maintenance and cleaning the hydraulic lift, must hold up safety poles.
FAQ
1.What's MOQ?
MOQ can be 1 set.
Guangzhou Laurel & Honesty Holdings specialized in all kinds of hydraulic pallet truck,stacker,forklift,electric chain hoist, chain block lever hoist, permanent magnet lifter,etc.The minimum order is 1 piece.
2.How about your payment terms?
60% deposit. the balance after B/L copy, we accept T/T, Western Union, and other Appropriate way
3.What’s the sample policy?
We can send you 1pcs sample for your test, but you need to pay for the cost and freight.
4.What information should I provide if I want to order the products?
The more information you provide, the accurate solution we can prepare for you! The
information such as the lift capacity, lift height, power source or other specials you give us will be more appreciated.Inquiry now!
5.What is your lead time for your goods?
Normally 20 days after confirmed order, 15 days could be available for some items in sufficient stock and standard requirements.
6.Do you have ISO system?
Yes, we have CE,BV,ISO9000,ISO9001 certification.
