Italy Type Vertical 10HP Small Industrial Diesel Engines Forced Air - cooled Low Fuel
Italy Type Vertical 10HP Small Industrial Diesel Engines with Forced Air-cooled Low Fuel

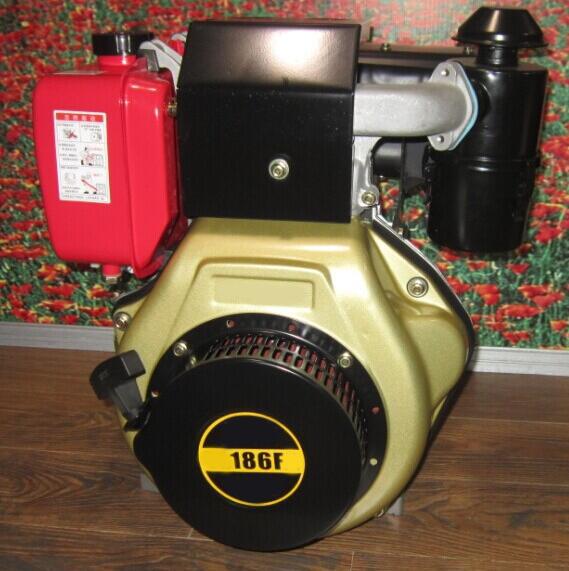

Diesel Engine Modle: LE186FA diesel engine price manual engine
10HP Diesel engine
1) Adopt 4-Stoke, air cooled, single cylinder engine;
2) Close in structure, simple in operation and covenievent in takeing or bringing;
3) Easy start system with low fuel consumption
4) CE & ISO9001 approved
5) Warranty will be one year from the shipping date
Features:
| Model | 186FA |
| Cooling method | Air-cooled |
| Type | Single cylinder, Vertical, Fourstroke, Direct injection |
| Bore× Stroke(mm) | 86*72 |
| Displacement(ML) | 418 |
| Compression ratio | 20± 1 |
| Engine Speed | 3000/3600 |
| Rated power(kw/rpm) | 5.5/3000 5.8/3600 |
| Max Power(kw/rpm) | 6.2/3000 6.6/3600 |
| Fuel | 0#or-10# light diesel oil |
| Fuel tank capacity(L) | 5.5 |
| Fuel consumption Rate(g/kw. h) | 285 |
| Lub-oil capacity(L) | 1.65 |
| Lubricating method | Pressure and splash combined |
| Crankshaft Direction | Clockwise from flywheel end |
| Starting method | Recoil manual start or electric start |
| Overall dimensions(L× W× H) (mm) | 485× 485× 545 |
| Dry weight(kg) | 53(recoil) 56(electric) |
Manufacture's Advantages:
1. Our factory was founded in 1981.
2. Main Products: diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel engines.
3. warranty period of 12 months or 1000 operating hours for gasoline engines.
