DC Controlled Warehouse Material Handling Equipment Narrow Aisle Electric Pallet Truck
DC Controlled 1500kg Capacity Electric Pallet Truck for Narrow Aisle
Product Introduction:
We dedicated more than 22 years to manufacturing and service. No matter is quantity or quality will be up to your standard because our products are ISO certified. You are welcomed to order sample order to test their capability. In terms of safety measures, we install explosion-proof valve in the pump, to avoid rapid decline to protect the operator; in addition, we keep lifting speed smooth regardless of loading weight to make sure it is safe to use. The pallet truck utlizes over-discharge protection device which will greatly extends battery life. Who can resist a product that has maintenance-free design, security features, service cost reducing characteristics?
New Features:
Perfect Upgrade of Reliability and Easy-maintenance.

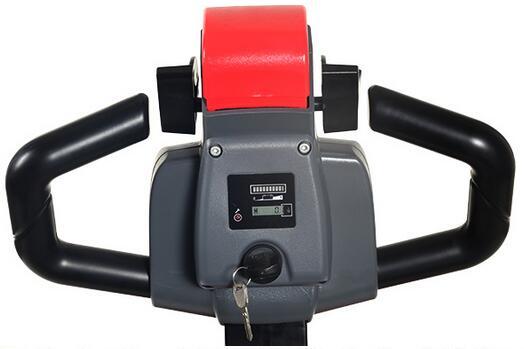

New Design: Ergonomic tiller bounded with key switch, BDI and troubleshooting indicator enhances easy and accurate operation.
External Control System: New designed external control system not only protects controller in place but also provides easy access for maintenance.
Emergency Switch: Upgraded emergency switch ensures safety.
Optimized Harness Layout: Optimized wire harness layout lowers twist failure rate.
Cover for Driving Wheel: Strong cover for driving wheel ensures the safety of the operator.
Front Detachable Battery Cover: Innovative Design, Easy for Battery Replacement.
Charger: Upper-installed Charger, Better Heat-Exhausting, Higher Charging Efficiency.
Specification:
| Model | LS20-15ET2 | ||
| Drive unit | Electrics | ||
| Operator type | Walkie | ||
| Rated capacity | Q | kg | 1500 |
| Load center distance | c | mm | 600 |
| Load distance | x | mm | 889/946 |
| Wheelbase | y | mm | 1261/1205 |
| Service weight (include battery) | kg | 195 | |
| Axle loading, laden driving side/loading side | kg | 565/1130 | |
| Axle loading, unladen driving side/loading side | kg | 155/40 | |
| Tyre type driving wheels/loading wheels | PU/ PU Solid | ||
| Tyre size, driving wheels(diameter×width) | mm | Dia.210x70 | |
| Tyre size, loading wheels(diameter×width) | mm | 2x Dia.78x60(Dia.78x88) | |
| Wheels, number driving, caster/loading (x=drive wheels) | mm | 1x /4(1x /2) | |
| Track width, rear, loading side | b11 | mm | 410(535) |
| Lift height | h3 | mm | 115 |
| Height drawbar in driving position min./max. | h14 | mm | 790/1225 |
| Lowered height | h13 | mm | 80 |
| Overall length | l1 | mm | 1638 |
| Length to face of forks | l2 | mm | 488 |
| Overall width | b1/ b2 | mm | 568(685) |

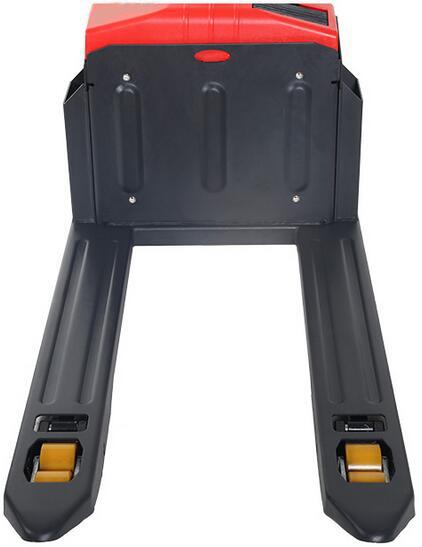

| Fork dimensions | s/ e/ l | mm | 50/150/1150 |
| Distance between fork-arms | b5 | mm | 560(685) |
| Ground clearance, center of wheelbase | m2 | mm | 30 |
| Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 1739 |
| Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 1939 |
| Turning radius | Wa | mm | 1485 |
| Travel speed, laden/ unladen | km/ h | km/h | 4/4.5 |
| Lifting speed, laden/ unladen | m/ s | 0.029/0.038 | |
| Lowering speed, laden/ unladen | m/ s | 0.046/0.033 | |
| Max. gradeability, laden/unladen | 2/6 | ||
| Service brake type | Electromagnetic | ||
| Drive motor rating S2 60 min | kW | 0.65 | |
| Lift motor rating at S3 15% | kW | 0.84 | |
| Battery voltage/nominal capacity K20 | 24/65 | ||
| Battery weight | kg | 22.5x2 | |
| Type of drive control | DC | ||
| Steering type | Mechanical | ||
| Sound pressure level at the driver’s ear | 74 |
