Lift Height 3000mm Warehouse Material Handling Equipment Manual Hydraulic Mini Stacker
Manual Type Hydraulic Mini Stacker , Lifting Height 3000mm , 1500KGS Load Capacity
Product Description
1) Regular handle discharges the load .
2) Extremely small turning radius grants it to be operated in the more narrow space
3) It applies C frame with the more stable and secure lift.
4) Fixed pallet fork and movable pallet fork for your free choice.
Advantage of Manual Type Hydraulic Mini Stacker , Lifting Height 3000mm , 1500KGS Load Capacity
1. Robust Steel profile construction.
2. An economical lift to handle tasks from transporting dies and moulds skids and pallets.
3. Sturdy and compact enough to fit through standard doors and to operate in congested areas.
4. Precision engineered for smooth performance and exceptional durability.
5. Lifting function operated by foot and hand controls.
Product Introductions:
1. the product have passed the TUV and CE certification.
2. the frame adopted the C structural steel, lifting more stable security.
3. thw whole products equiped with extended net and wheel frame production devices.
4. the forks can choose the fixed one and adjustable one.
5. the unloading ways can with hand or foot.
Technical Data:
| Model | LSA10 | LSA15 | LSA20 | |
| Load capacity/rated load | Q(kg) | 1000 | 1500 | 2000 |
| Load centre distance | c (mm) | 500 | 400 | 400 |
| Tyre size,front | mm | Φ80*70 | Φ80*70 | Φ80*70 |
| Tyre size rear | mm | Φ180*50 | Φ180*50 | Φ180*50 |
| Lifting height | H (mm) | 1600/2500/3000 | 1600/2500/3000 | 1600 |
| Fork lowered height | h (mm) | 90 | 90 | 90 |
| Most lowered height | F (mm) | 2080/1830/2080 | 2080/1830/2080 | 2080 |
| Groung clearance | X (mm) | 30 | 30 | 30 |
| Turning radius | R (mm) | 1200 | 1200 | 1200 |
Product Features:
1. Capacity: 1000kg, 1500kg, 2000kg
2. Color : red/yellow /blue/green etc, as per customer request
3. Fork : adjustable or fixed forks
4. Legs: straddle or forkover type
5. Power coating finish
With CE certificates, waiting for your order!
About us

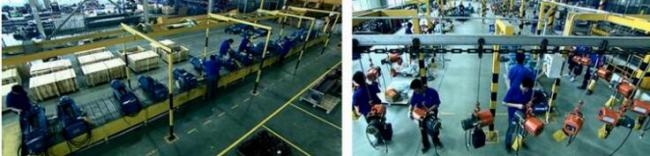

1) more than 23 years experience team in manufacturing, service.
2) with ISO certificates service and quality is before profit
3) sample order is acceptable
4) the payment terms: T/T
5) delivery term: FOB Ningbo, CIF, Ex-w factory etc.
Product details
High quality mast steel ensures rigidity, durability.
Integral pump, which prevents loosening, leak-proof
High efficiency pump, operating lighter, more comfortable.
Regardless of loading weight, lifting speed always smoothly as same, no impact, safe to use.
The stacker can be lifted by handle or foot pedal.
Hand control valve precises control convenience.
Set the active safety valve to prevent overloading of use.
Maintenance-free design, ensure security, reduce service cost.
