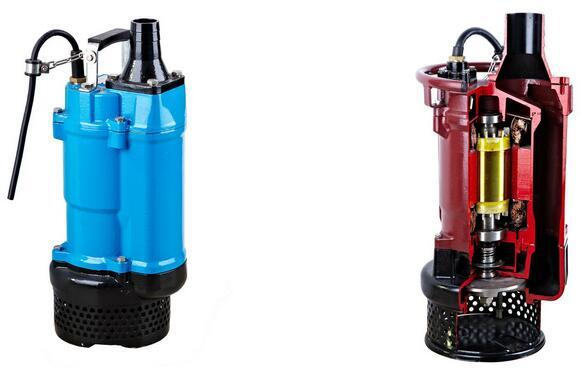

Cast Iron Agricultural Water Pump Drainage Vertical Centrifugal Submersible
2 - 6" Cast Iron Drainage Vertical Centrifugal Submersible Pump with 1.5Kw / 2HP to 11 Kw / 15HP
LPZ Submersible drainage pump
The body of motor and pump is made of rigid cast iron for long-lasting durability.
Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure(0.5Mpa) .
Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet.
Discharge 50mm (2") to 150mm (6"), motor 1.5Kw (2HP) to 11Kw(20HP).
Hermetically sealed motor equipped build-in thermal protection.
Specification:
| Capacity | up to 146 m3/h |
| Head | up to 40 meters |
| Power | 1.5Kw(2HP) to 11 Kw (15HP) |
| Power supply | three phase 380 V±10%, 50Hz |
| Insulation class | F |
| Protection class | IP68 |
| Cable | Length 8m |
| Water temperature | up to 40 °C |
| Max. water depth | 50m |
Application:
1. Civil engineering
2. Mines,quarries,coal ore & slurries
3. Sewage treatment plants
4. General pumping purposes
5. Special features on request

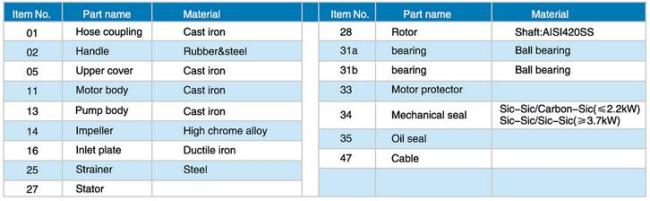

Materials of Construction:
CE Certificate:
