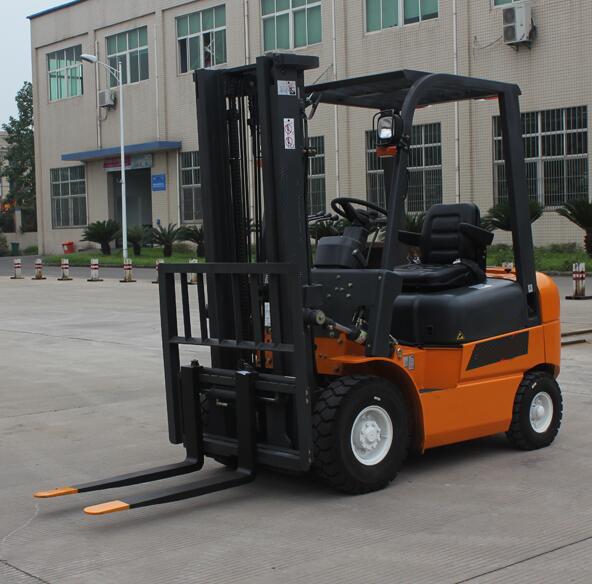

1.5 Tonne Load Capacity Warehouse Material Handling Equipment Counterbalance Diesel Forklift
1.5 Tonne Load Capacity Counter Balance Chinese Engine Diesel Fork Lift with Better Durability
Features
Rated capacity: 1.5-1.8 ton
Lifting height: 2500mm-6000mm
Fork length: 920mm-1670mm
Chinese & Japanese engine
| Rated capacity | 1.5 t~ 1.8 t |
| Power type | Diesel |
| Engine--Chinese | Xinchang |
| Engine--Japanese | ISUZU/YANMAR |
| Transmission | Mechanical & automatic transmission |
| Lifting height | 2500~6000mm |
| Cabin (heater/air conditioner) as option | |
| Brand | Laurel (OEM as option) |
| Color | Orange & grey (others as option) |
Specifications:
| Generals | Manufacturer | Laurel | |||||
| Model | LS15-X1 | ||||||
| LS15-W1 | |||||||
| LS15-Y1 | |||||||
| Power type | Diesel | ||||||
| Rated capacity | kg | 1500 | |||||
| Load center | mm | 500 | |||||
| Dimensions | Lift height | mm | 3000 | ||||
| Free lift height E | mm | 164 | |||||
| Fork size N×U×L | mm | 920×100×40 | |||||
| Mast tilt angle α / β | deg | 6/12 | |||||
| Front o-verhang A2 | mm | 436 | |||||
| Overall dimensions | Length to face of fork A1 | mm | 2235 | ||||
| Overall width B1 | mm | 1095 | |||||
| Mast lowered height H1 | mm | 1995 | |||||
| Mast extended height H3 | mm | 4030 | |||||
| Overhead guard height H2 | mm | 2075 | |||||
| Turning radius R | mm | 1960 | |||||
| Min. right angle aisle width X | mm | 1780 | |||||
| Performance | Travel speed (full load/no load) | Hydraulic | km/h | 14.5/13.5 | |||
| Mechanical | I | 6/5.5 | |||||
| II | 14/13.5 | ||||||
| Lift speed with load | mm/sec | 510/450 | |||||
| Max. gradeability | % | 20 | |||||
| Self weight | kg | 2740 | |||||
| Wheel & Tires | Tires | Front | 6.50-10-10PR | ||||
| Rear | 5.00-8-10PR | ||||||
| Tread | Front B2 | mm | 890 | ||||
| Rear B3 | mm | 920 | |||||
| Wheelbase A3 | MM | 1400 | |||||
| Ground clearance(no load/full load) | Mast M | mm | 95/105 | ||||
| Frame F | 105/115 | ||||||
| Drive units | Engine | Apply to truck model | LS15-X1 | LS15-W1 | LS15-Y1 | ||
| Model | XINCHAI NB485BPG | ISUZU C240PKJ | Yanmar 4TNE92 | ||||
| Rated output | kw/rpm | 30/2600 | 34.5/2500 | 32.8/2450 | |||
| Rated torque | N.m/rpm | 131/1800 | 139/1800 | 149/1600 | |||
| No.of cylinder | 4 | 4 | 4 | ||||
| Bore×stroke | mm | 85*100 | 86*102 | 92 x 100 | |||
| Displacement | L | 2.27 | 2.369 | 2.659 | |||
Certificate
Guangzhou Laurel & Honesty Holdings is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
