Materials Handling Equipment 200kg 400kg Multi Purpose Light Duty Electric Stacker

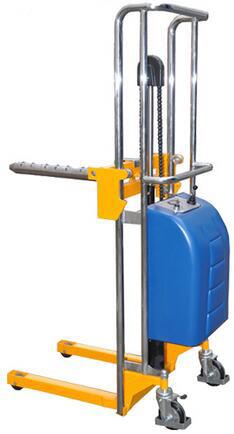

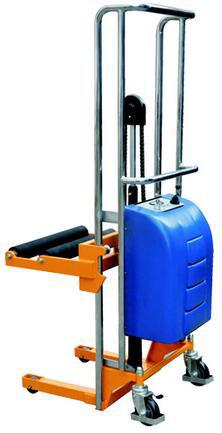

200kg 400kg Multipurpose Counterbalance Light - duty Electric Stacker
Features of 200kg 400kg Multipurpose Light-duty electric Stacker
1.High quality electric pump provides easy and labor-saving operation
2.Maintenance-free battery with lasting power and battery capacity display
3.Chromium plated frame can be beautiful and durable
4.Built-in charge can be convenient and safe to use
5.Non-standard design can apply various technique requirements and be widely used
Specification Data of 200kg 400kg Multipurpose Light-duty electric Stacker:
| Model EPF(With fixed fork) | LSF4120 | LSF4150 | LSF4180 | |
| Model EPJ(With adjustable fork) | LSP4120 | LSP4150 | LSP4180 | |
| Max. Capacity | kg | 400 | 400 | 200~400 |
| Min./Max. fork height | mm | 85/1200 | 85/1500 | 85/1800 |
| Fork Size(LxW) | mm | 650x100 | 650x100 | 650x100 |
| Fixed fork outside width(EPF series) | mm | 550 | 550 | 550 |
| Adjustable fork width(EPJ series) | mm | 215-550 | 215-550 | 215-550 |
| Overall Size | mm | 1100X590X1410 | 1100X590X1710 | 1100X590X2010 |
| Front wheel | mm | Φ75X30 | Φ75X30 | Φ75X30 |
| Rear wheel | mm | Φ125X40 | Φ125X40 | Φ125X40 |
| Power unit | V/kw | DC 12/0.8 | DC 12/0.8 | DC 12/0.8 |
| Battery | V/Ah | 12/60 | 12/60 | 12/60 |
| Net weight (EPF series) | kg | 105 | 108 | 114 |
| Net weight (EPJ series) | kg | 108 | 110 | 116 |
| Option Platform | mm | LP20(660x580) | LP20(660x580) | LP20(660x580) |
Other optional accessories are available.
FAQ
Q1: Warranty for the product?
A1: 12 months warranty on major components and 180 days on wearable items.
Q2: How about the delivery time for the products showed in website?
A1: Normally 15-35 days after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.
Q3: How many days we need for sending shipping documents?
A1:Usually within 5 daysafter vessel shipped out.
Q4:Are you a manufacturer?
A4: Yes, we have several factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, and In China, we have OKUTSU, LIZHOU,Laurel famous brand name to service our Clients. We also have OEM &ODM service experience for worldwide big brand.
Q5:What kind of certificates do you have?
A5: We have ISO9001,14000,18000,CE and GS certificates.
Q6:What's Normal Warranty Policy and service program?
A6: Laurel give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Note:
Please check the warranty policy for the line of Laurel material handling equipments from our sales department.
Please note the warranty is for end user who purchase direct from Laurel.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. Laurel believe local strategy is the best way for our distributors and local customers.
