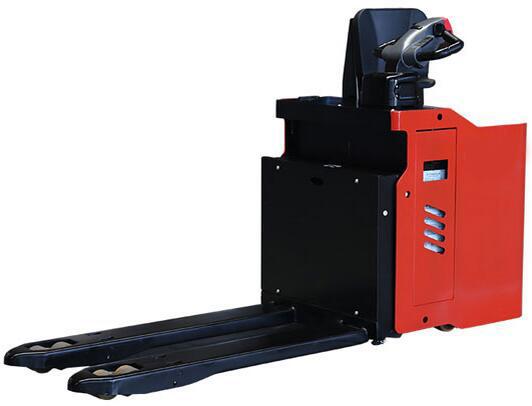

AC Controlled Drivable Easy Turing Seated 2000kg Electric Pallet Truck PU Wheel
AC Controlled Drivable Easy - Turing Seated 2000kg Electric Pallet Truck
Product Overview:
Place of Origin: Guangzhou, China (Mainland)
Brand Name: Laurel
Model Number: LS20-WARS
Lift Drive / Actuation: Electric Motor
Load capacity: 2000kg
Fork dimension: 55*170*1150mm
Material: Stainless steel
Wheels: PU Wheel
Max. Lifting Height: 120mm
Lowered fork height: 85mm
Handle: Rubber Warpped
Color: Red
New Featuers:
- Electric Turning System cost you less effort.

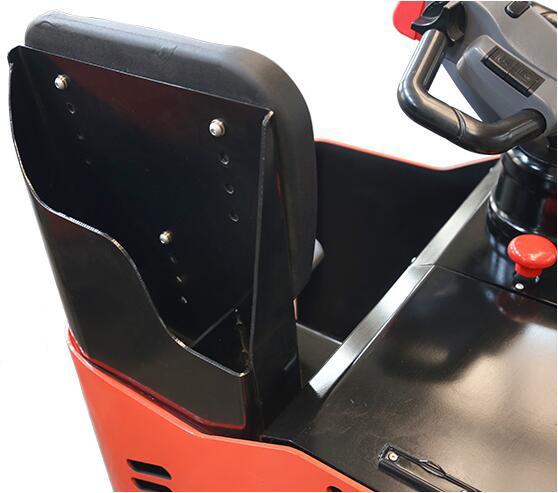

- Folder Sit allows you put your documents on the truck without worrying them fly away while driving.
- The seat facing left makes you notice anything happen in front of or behind the truck.
- Adjustable seat increases the comfortability of the driver.
- Added tool cabinet behind the seat saves you a lot of hassle when you need a pencil, screw driver, hammer, and other tools.
Specification:
| Distinguisting Mark | |||
| Manufacturer | Laurel | ||
| Model | LS20-WARS | ||
| Drive Unit | Electric | ||
| Operator Type | Driving | ||
| Rated Capacity | Q | kg | 2000 |
| Load Center Distance | c | mm | 600 |
| Load distance | x | mm | 946 |
| Wheelbase | y | Mm | 1520 |
| Weight | |||
| Service Weight (include battery) | kg | 574 | |
| Axle Loading, laden driving side/ loading side | kg | 826/ 1709 | |
| Axle loading, unladen driving side/ loading side | kg | 438/ 126 | |
| Tyres, Chassis | |||
| Tyre type driving wheels/ loading wheels | PN/PN solid | ||
| Tyre size, driving wheels (diameter*width) | mm | Φ230*75 | |
| Tyre size, loading wheels (diameter*width) | mm | 2*Φ85*70 | |
| Tyre size, caster wheels (diameter*width) | mm | Φ130*55 | |
| Wheels, number driving, caster/ loading (x=drive wheels) | mm | 1 X + 1/ 4 | |
| Track width, front, driving side | b10 | mm | 396 |
| Track width, rear, loading side | b11 | mm | 368/428/513 |
| Dimensions | |||
| Lift height | h3 | mm | 120 |
| Height Drawbar in driving position | h14 | mm | 1180 |
| Lowered height | h13 | mm | 85 |
| Overall length | l1 | mm | 1937 |
| Length to face of forks | l2 | mm | 787 |
| Overall width | b1/b2 | mm | 730 |
| Fork Dimensions | s/ e/ l | mm | 55*170*1150 |
| Distance between fork-arms | b5 | mm | 600/685 |
| Ground clearance, center of wheelbase | m2 | mm | 35 |
| Aisle width for pallets 1000*1200 crossways | Ast | mm | 2010 |
| Aisle width for pallets 800*1200 crossways | Ast | mm | 2210 |
| Turning radius | Wa | mm | 1790 |
| Performance Data | |||
| Travel speed, laden/ unladen | Km/h | 5.5/6 | |
| Lifting speed, laden/ unladen | m/s | 0.023/0.030 | |
| Lowering speed, lade3n/ unladen | m/s | 0.032/0.029 | |
| Max. gradeability, laden/ unladen | % | 8/16 | |
| Service brake type | Electromagnetic | ||
| Electric Engine | |||
| Drive motor rating S2 60min | kW | 1.5 | |
| Lift motor rating at S3 15% | kW | 0.84 | |
| The Maximum size of battery | mm | 650*200*570 | |
| Battery voltage/ nominal capacity K5 | V | 24/210 | |
| Battery weight | kg | 155 | |
| Addition Data | |||
| Type of drive control | AC | ||
| Steering type | Mechanical | ||
| Noise level at the driver's ear | dB | 74 | |
Why choose Laurel?
1) More than 22 years experience team in manufacturing, service.
2) With ISO certificates service and quality is before profit
3) Sample order is welcomed also.
4) Explosion-proof valve in the pump, to avoid rapid decline to protect the operator
5) Over-discharge protection device greatly extends battery life
6) Lifting speed keeps smooth regardless of loading weight, which is safe to use
7) Maintenance-free design, ensures security, reduces service cost
