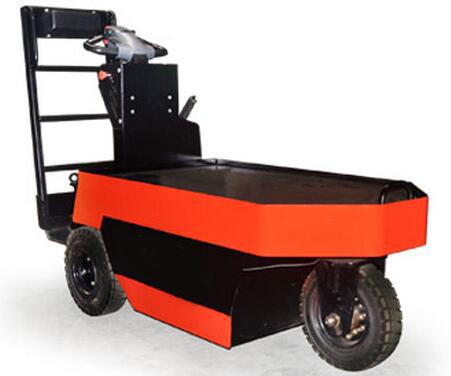

Standing Drivable Warehouse Material Handling Equipment 2500kg Mini Electric Tow Tractor
Standing Drivable 2500kg Mini Electric Tow Tractor for Narrow Aisles
Product Overview:
Condition: New
Place of Origin: Guangzhou, China (Mainland)
Brand Name: Laurel
Model Number: LSD25P
Type: electric tow tractor
Power Souce: AC Motor
Rated Loading Capacity: 2500kg
Overall Dimensions L*W*H(without ladder): 2190*780*1265mm
Net Weight (including battery): 750kg
Certification: CE/ISO9001
After-sales Service Provided: No overseas service provided
Operator type: Standing
Drive unit: Electrical
Product Specification:
| Features | |||
| Brand | Laurel | ||
| Model | LSD25P | ||
| Drive Unit | Electric | ||
| Operator type | Standing | ||
| Platform Rated capacity | Q | kg | 450 |
| Pulling capacity | kg | 2000 | |
| Wheel base | y | mm | 1055 |
| Weight | |||
| service weight (including battery) | kg | 750 | |
|
Axle Loading, laden rear/ front |
kg | 640/560 | |
| Axle Loading, unladen rear/front | kg | 450/300 | |
| Tires, Chassis | |||
| Tyres Type | Solid Tires | ||
| Driving Wheels Size (Diameter*Width) | mm | 4.0*8 | |
| Turing Wheel Size(Diameter*Width) | mm | 15*4.5 | |
| Number of Wheels (x is driving wheel) | 1+2x | ||
| Distance Between Rear Wheels | b11 | ||
| Dimension | |||
| Height no ladder | h6 | mm | 1265 |
| Height with #3 Ladder | mm | 1940 | |
| Height with #5 Ladder | mm | 2480 | |
| Tow Coupling Height | h10 | mm | 320 |
| Height of Loading Platform (unladen) | h11 | mm | 590 |
| Length of Loading Platform | I3 | mm | 1300 |
| Width of Loading Platform | b9 | mm | 740 |
| Overall length without ladder | l1 | mm | 2190 |
| Overall length with #3 Ladder | mm | 2300 | |
| Overall length with #5 Ladder | mm | 2400 | |
| Overall width | b1/b2 | mm | 780 |
| Distance between wheelbase and the ground | m2 | mm | 74 |
| Outer turning radius | Wa | mm | 1385 |
| Battery voltage | V/Ah | 48/200 | |
| Performance Data | |||
| Driving Speed, laden/unladen | Km/h | 7/7 | |
| Rated Traction | N | 640 | |
| Maximum Traction (laden/unladen) | N | 2500 | |
| Max. Climbing Deg. (laden/unladen) | % | 5/20 | |
| Service Brake Type | Hydraulic/ Mechanical | ||
| Motor | |||
| Drive Motor Rating S2 60 min | kW | 3 | |
| Battery Voltage/ Rated Capacity K5 | 48/200 | ||
| Battery Weight | kg | 200 | |
| Other Data | |||
| Noise Level | dB (A) | 70 | |
| Tow Coupling | Pin | ||
Packaging & Shipping:
Packaging Details: standard packaging or as requested.
Delivery Detail: 5~30 days as usual,depends on quantity
