Easy Affordable 3.5T Gasonline LPG Forklift for New Design , AC Motor Power
Easy Affordable 3.5T Gasonline LPG Forklift for New Design , AC Motor Power
Our Company:
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around 10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "LS" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.

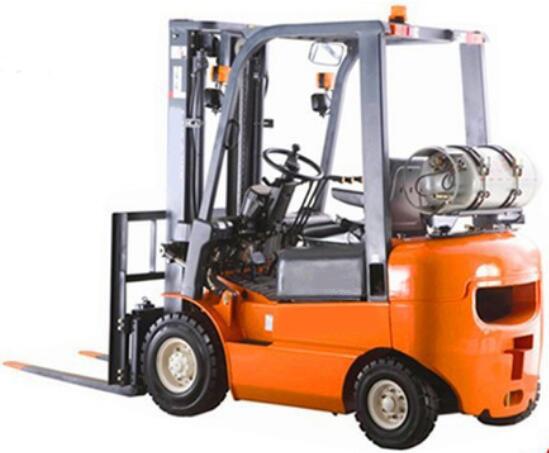

Features of 3.5T Gasoline LPG Forklift
- The machine body is designed with big arc streamline and fitted with open anti-slippage pedal.high position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life.The engine hood has functions of sound absorption and heat isolation.
- Rear in-built dual lifting cylinder is used,wide visual view,safety operation and high efficiency.
- A hydraulic converter produced by introduction of japanese technology,high efficiency,no oil leakage,reliable work,compact structure of hydraulic transmission,shift gear valve,micromotion valve,characterized by smooth starting,stepless speed adjustmet,micromotion and acceleration performance.
- Full hydraulic steering gear,transverse cylinder,steering axle integrated into one body,flexible steering,compact structure and convenient repair.
- Adjustable driver’s seat,reducingoperation fatigue to a maximum extent.Tilt lifting steering wheel and new type multifunc-tional panel fully represents harmony between the machine and human.
- Imported sealing parts are used in the cylinder,cone sealing used in fittings,good sealing performance,long service life;multiple reversing valve with automatic tilt locking device,advanced strudture to meet safety requirement.
- Big power and free-maintenarting battery with American technology,small volume,good performance,long storage period;general contactor arranged in the electric circuit,prolong life of the key switch,completely removing self-discharge.
- Beautiful appearance,quick and smooth lifting,high high productivity,it is an ideal loading and unloading machin for stations,ports,docks,warehouse,warehouse,airports and factories etc which need low noise and small smoke.
Specification Data of 3.5T Gasoline LPG Forklift
| Genenrals | Model |
LS35- WF LS35-WF LS35- H2 LS35-H2 LS35- R LS35-R |
|||
| Power type | Gasoline LPG | ||||
| Rated capacity | kg | 3500 | |||
| Load center | mm | 500 | |||
| Dimensions | Lift height | mm | 3000 | ||
| Free lift height E | mm | 145 | |||
| Fork size N×U×L | mm | 1070*130*45 | |||
| Mast tilt angle α / β | deg | 6/12 | |||
| Front overhang A2 | mm | 501 | |||
| Overall dimensions | Length to face of fork A1 | mm | 2720 | ||
| Overall width B1 | mm | 1225 | |||
| Mast lowered height H1 | mm | 2070 | |||
| Mast extended height H3 | mm | 4272 | |||
| Overhead guard height H2 | mm | 2090 | |||
| Turning radius R | mm | 2540 | |||
| Min. right angle aisle width X | mm | 2190 | |||
| Performance | Travel speed (full load/no load) | Hydraulic | km/h | 18/19 | |
| Mechanical | Shift I | 8.5/9 | |||
| Shift II | 18.5/19 | ||||
| Lift speed (full load) | mm/sec | 360 | |||
| Max. gradeability | % | 15 | |||
| Self weight | kg | 4750 | |||
| Wheel & Tires | Tires | Front | 28X9-15-14PR | ||
| Rear | 6.50-10-10PR | ||||
| Tread | Front B2 | mm | 1000 | ||
| Rear B3 | mm | 970 | |||
| Wheelbase A3 | mm | 1700 | |||
| Ground clearance (full load/no load) | Mast M | mm | 110/135 | ||
| Frame F | 130/135 | ||||
| Drive units & control | Engine | Engine Name Code | F1 | ||
| Model |
Laurel LE491GP |
||||
| Rated output | kw/rpm | 41/2800 | |||
| Rated torque | N.m/rpm | 161/2000 | |||
| No.of cylinder | 4 | ||||
| Bore×stroke | mm | 91*86 | |||
| Displacement | L | 2.237 | |||
| Drive units & control | Engine | Engine Name Code | H2 | ||
| Model | NISSAN H25(K25) | ||||
| Rated output | kw/rpm | 44/2500 | |||
| Rated torque | N.m/rpm | 179/1600 | |||
| No.of cylinder | 4 | ||||
| Bore×stroke | mm | 92*93 | |||
| Displacement | L | 2.472 | |||
| Drive units & control | Engine | Engine Name Code | R | ||
| Model | MITSUBISHI 4G64-31ZG | ||||
| Rated output | kw/rpm | 37/2500 | |||
| Rated torque | N.m/rpm | 161/1600 | |||
| No.of cylinder | 4 | ||||
| Bore×stroke | mm | 86.5*100 | |||
| Displacement | L | 2.35 | |||
Our Services
1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.
2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.
3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.
4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.
5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.
6. Warranty period is one year after you receiving the machines.
If there is any question, pls feel free to contact us !
