Narrow Space Material Handling Equipment 1000kg Capacity Mini Electric Walkie Tow Tractor
1000kg Capacity Mini Electric Walkie Tow Tractor for Narrow Space
Product Overview:
Condition: New
Place of Origin: Guangzhou, China (Mainland)
Brand Name: Laurel
Model Number: LSD10
Type: Tow tractor
Power Souce: DC Motor
Rated Loading Capacity: 1000KG
Overall Dimensions (L*W*H): 1255*520*1070mm
Certification: CE/ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
Drive unit: Electric
Type of operation: Pedestrian
Service weight: 98kg
Tyre type: Rubber
Overall length: 1255/1315/1345mm
Travel speed,laden/unladen: 4.5/5 km/h
Drawerbar pull,laden/unladen: 200N
Battery voltage/ rated capacitance (5h): 24V/50Ah
Features:
- Great flexibility with minimum volume: light self-weight of 98kg only and the application of differential mechanisms make it more flexible and easier to operate.
- Strong traction: it can manage the towing task of 1000kg goods on a slope of 3% degrees.
- Stability in operation and excellent passing capability : the application of pneumatic tire with a diameter of 250mm.
- Easy to charge: with the application of internal charges, charging process can be realised where there is a socket.
- Comfortability in operation: the height of the tractor is adjustable.
Product Specification:
| Characteristics | |||
| Manufacturer | Laurel | ||
| Model designation | LSD10 | ||
| Drive unit | Electric | ||
| Operator type | Walkie | ||
| Load capacity | Q (kg) | 1000 | |
| Rated drawbar pull power | F (N) | 200 | |
| Wheelbase | y (mm) | 315 | |
| Weights | |||
| Service weight | kg | 98 | |
| Axle loading, laden driving side/loading side | kg | 98/0 | |
| Axle loading, unladen driving side/loading side | kg | 78/20 | |
| Wheels, Chassis | |||
| Tire type | Rubber tire | ||
| Tire size, driving wheels (dia*width) | (mm) | 2x 250x85 | |
| Tire size, loading wheels(dia*width) | (mm) | 2x 75x32 | |
| Track width, front, driving |
b10 (mm) |
428(outer) | |
| Track width, rear, loading | b11 (mm) | 217(outer) | |

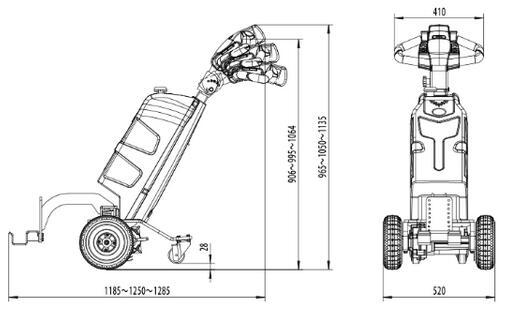

| Dimensions | |||
| Overall dimensions (not working) | mm | 1255x 520x 1064 | |
| Tractor height (not working) | mm | 906~995~1064 | |
| Tractor height in driving position min~max | mm | 835~930~1010 | |
| Overall length | mm | 1255~1315~1345 | |
| Overall Width | mm | 520 | |
| Ground clearance(working) | mm | 27 | |
| Performance | |||
| Travel speed, laden/ unladen | km/ h | 4.5/5 | |
| Maximum gradeability, laden/ unladen | % | 3/16 | |
| Drawbar pull power, laden/unladen | N | 200 | |
| Max. Drawbar pull power, laden/unladen | N | 650 | |
| Service brake type | mechanical | ||
| Battery and Motor | |||
| Drive motor rating S2 60 min | kW | 0.4 | |
| Battery voltage/ rated capacitance K20 | V/ Ah | 24/50 | |
| Battery weight | kg | 2*19 | |
| Max. battery size | mm | 196/165/175 | |
| Battery type | Maintenance free | ||
| Others Data | |||
| Type of drive control | DC | ||
| Steering type | Mechanical | ||
| Sound level at operator's ear | dB (A) | 74 | |
Company Information
Guangzhou Laurel & Honesty Holdings is the most reputable high-tech electric equipment supplier in China. Integrated with R&D, Manufacture, Sales and Technical Service, we engages in professional design and supplies for various power equipment and instrument, such as diesel and gasoline engine and it's terminal products, Water Pump, tiller ,Diesel Generator , Gasoline Generator, Portable Variable-frequency Generator, Welding Generator, high pressure washer ,UPS (Uninterruptible Power System) and ATS (Automatic Transfer Switch). Our products have been to different countries and regions, We are located in the South China City of Guangzhou, Guangdong.

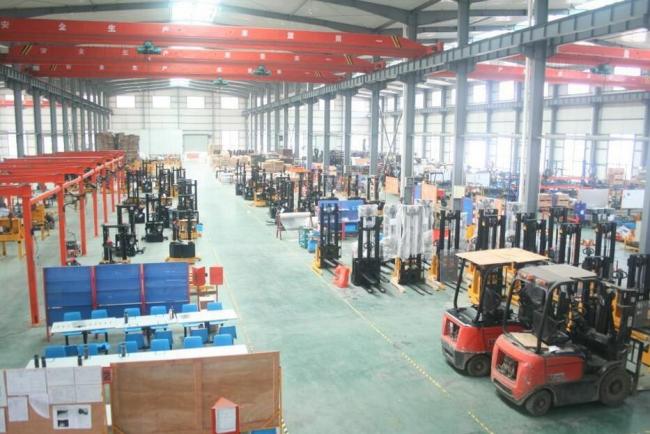

Our company integrates scientific research, production and sales. We own advanced scientific research equipment, advanced technology, production line and testing line, with a production capacity of 300,000 gasoline engines for general purposes and terminal products.
