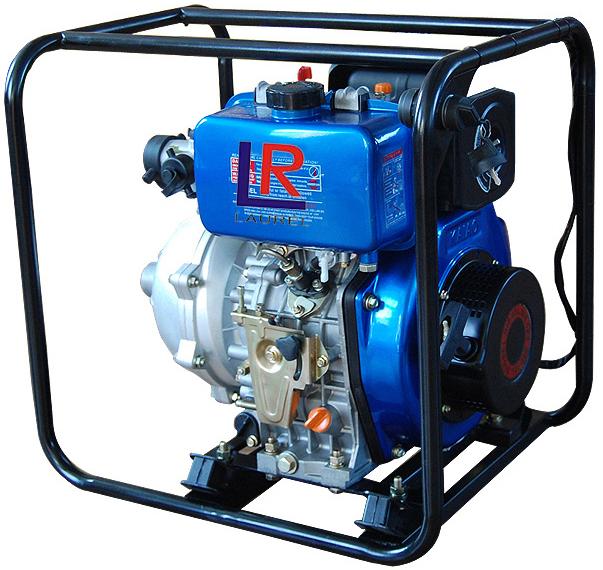

Portable 1.5 inch 5HP High Pressure Diesel Water Pump with 4 Stroke Engine
Free Inspection Portable 1.5inch 5HP High Pressure Diesel Water Pump with 4 Stroke Engine
Product specification:
1.Fuel type:gasoline,diesel,Kerosene.
2.Pump type:self-priming,centrifugal.
3.Use:clean water pump,seawage water pump,fire fighting water pump.
4.Measurement:1.5 inch,2 inch,2.5 inch,3 inch,4 inch,6 inch.
Product Features:
1.High efficiency
2.Stable running
3.Portable and lightweight
4.Compact structure
5.Low fuel consumption
6.Long life
Service:
1.One year warranty,except easily damaged parts.
2.Certificates:CE and ISO9001.
3.OEM and ODM are available.
4.Optional color:red,yellow,blue,green and black.
Technical parameters water pump:
| Model | LP15H |
| Diameter(mm) (inch) | 40(1.5" ) |
| Max. flow(m3/h) | 10 |
| Max. lift(m) | 42 |
| Max. suction lift(m) | 8 |
| Rotational speed(rpm) | 3600 |
| Self-priming time(s/4m) | 40 |
| Engine model | KA178F |
| Engine type | Single-cylinder, vertical, 4-stroke,air cooled,direct injection |
| Bore*stroke(mm) | 78*62 |
| Displacement (L) | 0.296 |
| Power (kw/rpm) | 4/3600 |
| Fuel consumption rate(g.kw/h) | 285 |
| Compression ratio | 20 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil start |
| Fuel oil model | Summer:0#,Winter:-10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.1 |
| Fuel tank capacity (L) | 3.5 |
| Dimension (L*W*H)(mm) | 558*450*550 |
| Net weight(kg) | 50 |
| Gross weight(kg) | 55 |
FAQ
Q1: What's your MOQ of this Item?
A1: 1 PCS
Q2:What's your payment term?
A2:L/C and T/T
Q3:Where is your Loading Port?
A3:Guangzhou,China Port or according to your requirements.
Q4:How about your quality control in your factory?
A4:Our company are always paying great attentions to the quality controlling from the beginning to the end.
Q5: Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings.
Q6: How do you make our business long-term and good relationship?
A6:1. We keep good quality and competitive price to ensure our customers' benefit;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our Services
1.OEM is available,we accept your brand and designing of packing cartons.
2.We supply samples for your reference and checking.
3.Delivery time:at least 15 days after receiving your deposit.
4.Warranty:1 Year,except the easily damaged parts.
